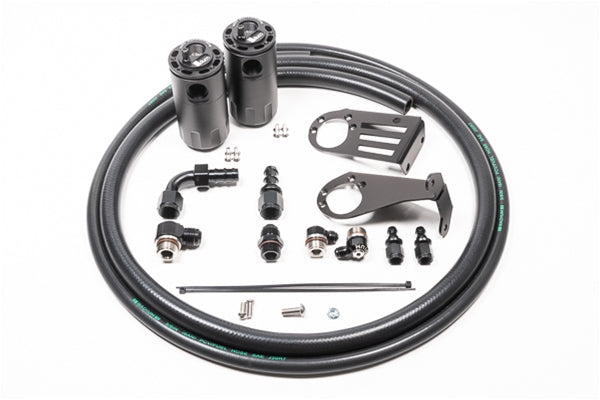

Radium Engineering Dual Catch Can Kit Nissan S15 Silvia/200SX, Fluid Lock - 20-0637-FL

Radium Engineering 20-0637-FL Fluid Lock dual catch can kit for the Nissan S15 Silvia and 200SX. Combines the 20-0635-FL PCV kit and the 20-0636-FL CCV kit.

• PCV can runs in-line between the PCV valve and the intake manifold and attaches to three OEM threaded bosses in the right-hand corner near the firewall
• CCV can runs in-line between the crankcase vent (CCV) port and the intake pipe and attaches to two of the wiper blade motor mounts
• No extra check valve is needed
• Direct fitment, no drilling required
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity per can
• Patented Fluid Lock system prevents overfilling and holds collected fluid until the can is emptied

Fitment

• Nissan Silvia (S15). (Source: Radium Engineering)
• Nissan 200SX (S15). (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
