Radium Engineering Dual Pump Add-On Acura NSX, Walbro F90000267/274/285 - 20-2797

Radium Engineering 20-2797 dual pump add-on for Walbro F90000267/274/285 style pumps. Converts the 20-2792 fuel pump hanger into a dual pump hanger for the 1990-2005 Acura NSX.

• Requires the Radium 20-2792 hanger (sold separately). The pumps are also sold separately
• Compatible pumps: Walbro F90000267, F90000274, F90000285 and F90000295 (no check valve). Sock filters are included in the kit

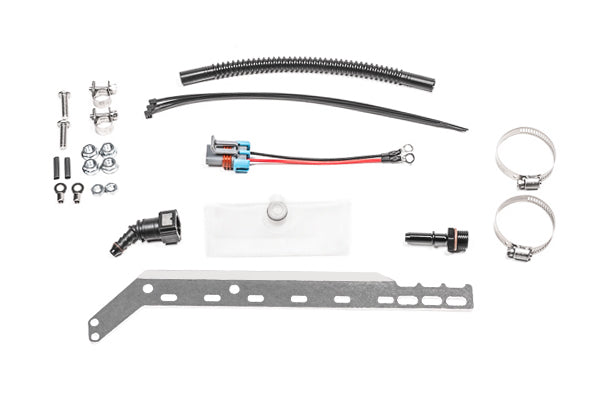

• Includes everything needed to install a second pump into a 20-2792 hanger
• Electrical plug and SAE quick connector, so no assembly is needed before the unit goes into the tank
• Both pumps merge into the single 8AN ORB outlet
• Pumps with integrated check valves allow staging
• Not usable with brushless pumps
• Install pump 2 into the tank first, followed by pump 1. The small tank opening means both pumps cannot pass through at once

Fitment

• Acura NSX 1990-2005, all models/trims, RHD and LHD. (Source: Radium Engineering)
