Radium Engineering Dual Pump Add-On Fuel Pump Hanger Acura Integra 94-01, Honda Civic 92-00 AEM/Walbro GSS342 - 20-0796-00

Radium Engineering 20-0796-00 dual pump add-on for the Radium Integra/Civic fuel pump hanger. Fits the 1994-2001 Acura Integra and 1992-2000 Honda Civic and adds a second AEM or Walbro GSS342 pump to hanger 20-0790-00.

• Add-on for Radium hanger 20-0790-00, which is required (hanger sold separately)
• Compatible pumps: AEM 50-1000, AEM 50-1200 and Walbro GSS342 (pumps sold separately)
• Both pumps merge into the single 8AN ORB outlet of the hanger
• Integrated check valves permit pump staging
• Two pumps cannot pass through the small tank opening at the same time. The rear pump is placed first and held back by the provided tool while the front pump is inserted
• Electrical plug and SAE quick connector reduce assembly work
• 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger

Included

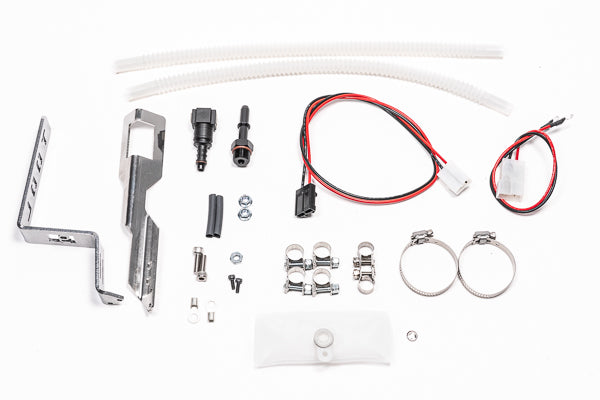

• Everything needed to add a second pump, including the rear-pump positioning tool and the electrical and SAE quick connect parts

Fitment

• Acura Integra 1994-2001, all models and trims, RHD and LHD. (Source: Radium Engineering)
• Honda Civic 1992-2000, all models and trims, RHD and LHD. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
