Radium Engineering Extension Kit for FCST-X 3.7 in 1.2 L - 20-1989

Radium Engineering 20-1989 3.7 in / 1.2 L extension kit for the FCST-X fuel cell surge tank. Fits many FCST-X units, the R14A and the R22A fuel cells.

• Adds 1.2 liters of volume to the surge tank in many FCST-X (10yr special edition) units
• Lowers the one-way fill valves for better fuel starvation protection at low fuel levels
• Anodized aluminum canister mounts between the top plate and the existing surge tank canister
• Stainless steel pump bracket replaces the existing one
• The kit is 3.7 in taller, so it is not compatible with shallow fuel cells
• Not assembled by Radium when an FCST-X is purchased, so it is installed by the end user

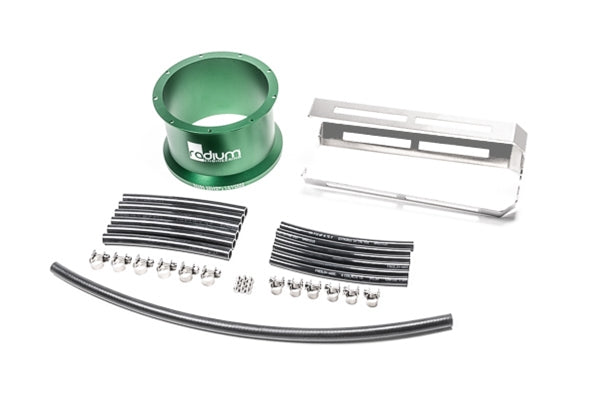

Included

• Anodized aluminum canister
• Stainless steel pump bracket
• Large ID fuel pump tubing
• Small ID fuel pump tubing
• Submersible fuel hose
• Stainless steel hardware

Fitment

• Radium FCST-X models 20-1990-00, 20-1990-01, 20-1990-02, 20-1990-03, 20-1992-00, 20-1992-01, 20-1992-02 and 20-1992-03. (Source: Radium Engineering)
• Radium FCST-X model 20-1991-00 with fitting 14-0691 to replace the pump outlet adapters. (Source: Radium Engineering)
• Radium R14A (20-0614) and R22A (20-0622) fuel cells. (Source: Radium Engineering)
• Other fuel cell brands that accept an FCST-X with a minimum depth of 10.8 in. (Source: Radium Engineering)
• Not compatible with 6, 10 or 10.5 gallon Radium RA-Series fuel cells. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
