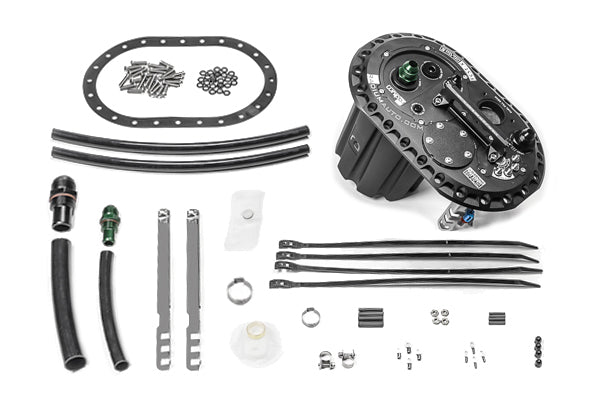

Radium Engineering FCST-X Fuel Cell Surge Tank for External Pumps - 20-1995-00

Radium Engineering 20-1995-00 FCST-X in-cell fuel cell surge tank for external pumps. Fits fuel cells with a 6x10 in, 24-bolt top-face flange opening.

• For use with external pumps. No lift pump is included, so one must be purchased separately
• Lift pump options include Walbro F90000267/274/285/295
• Includes two 80 micron filters for 10AN pickups
• A 16AN pickup is included, but its external filter is sold separately
• Compatible with 16AN inlet mechanical pumps
• Three one-way FKM fill valves rated at 355 LPH each refill the surge tank from the cell
• Full CNC aluminum with anodized finish
• Compatible with leaded and unleaded gasoline, methanol, ethanol and E85
• Fast pump module access with 9 bolts, plus an integrated lift handle
• Hermetically sealed high-current stainless electrical studs with anti-rotation terminals

Included

• Two 80 micron filters for 10AN pickups
• 16AN pickup (external filter sold separately)

Fitment

• Fuel cell with a 6x10 in, 24-bolt top-face flange opening (not a side face). (Source: Radium Engineering)
• Fuel cell depth of at least 7.7 in (196 mm) from the outer top face to the internal floor. Cells deeper than 12.7 in (323 mm) need the lift pump mounts listed on Radium's site. (Source: Radium Engineering)
• Compatible with all Radium fuel cells and other cells that meet these criteria. The fuel cell is not included. (Source: Radium Engineering)
