Radium Engineering FCST-X Fuel Cell Surge Tank for Walbro GSS342 / AEM 50-1200 / Deatschwerks DW440 (Pumps Not Included) - 20-1990-00

Radium Engineering 20-1990-00 FCST-X fuel cell surge tank for Walbro GSS342, AEM 50-1200 or Deatschwerks DW440 pumps. Pumps are not included.

• Supports up to 3 surge tank pumps and 1 lift pump
• Compatible pumps: Walbro GSS342, AEM 50-1200, AEM 50-1000, Deatschwerks DW440 (use the electrical connector provided with the pump)
• Merged single 10AN ORB female outlet with check valves on all pumps
• Surge tank volume is 2.6 L
• Fast lift and surge pump access with 9 bolts total, plus an integrated lift handle for pump servicing
• Full CNC aluminum construction with anodized surfacing
• Compatible with leaded and unleaded gasoline, methanol, ethanol and E85
• Hermetically sealed high-current stainless steel electrical studs with anti-rotation terminals
• Rollover vent valve protection
• Optional fuel level switch and diagnostic LED failsafe port
• Compatible with shrouded level sensors
• Fits fuel cells with an industry-standard 6 x 10 in, 24-bolt flange opening on the top face and a depth of at least 7.7 in (196 mm). Cells deeper than 12.7 in (323 mm) need the lift pump mounts accessory
• Ports: pump out 8AN male, return 6AN male, vent 8AN male. Fuel filler uses a 3-bolt flange, 59.5 mm P.C.D.

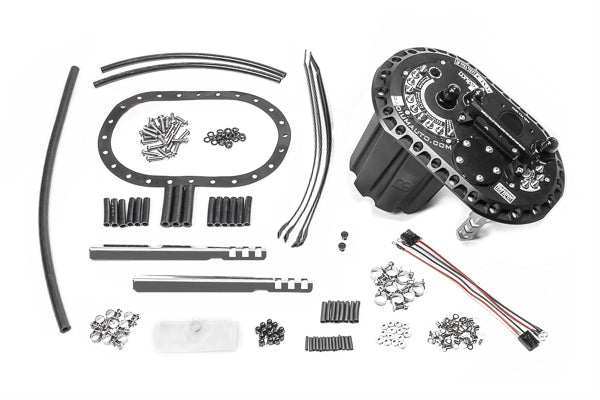

Included

• Anodized aluminum 6 x 10 plate, surge pump hat, lift pump hat, service handle, level sensor plate and surge pump bracket
• Stainless lift pump mounts (shallow and deep)
• Lift pump and surge pump fuel filters
• Anodized aluminum 8AN rollover vent valve
• FKM refueling rollover protection seal and 6 x 10 24-hole sealing gasket
• 8AN ORB to 6AN male return fitting
• 10AN ORB to 8AN male pump out fitting
• 2AN ORB fuel level switch plug
• FKM one-way fill valves (x3)
• Anodized aluminum acorn nuts and electrical wire ring terminals

Not included

• Fuel pumps
• Fuel cell, fuel filler, vent hose and filter
• Fuel level sender (a block-off plate is included)

Fitment

• Fits all Radium fuel cells and any fuel cell with a 6 x 10 in, 24-bolt top flange opening at least 7.7 in (196 mm) deep. Not vehicle specific. (Source: Radium Engineering)
