Radium Engineering Fuel Cell Subharness Kit for FCST-X - 20-0774

Radium Engineering 20-0774 fuel cell subharness kit for the Radium FCST-X and RA-Series fuel cells.

• Helps with faster pit stops. With a subharness on both the fuel cell and a spare FCST-X pump module, the pump assembly can be swapped without tools
• Pre-terminated 10 AWG wires with identification labels tied to FCST-X. Older FCST units with different labeling can still use them
• Mounting bracket fits the perimeter of RA-Series fuel cells. The bulkhead mount is compatible with all RA-Series units
• The bracket can be placed anywhere on the perimeter and rotated inward or outward for a 3 in (76 mm) difference in location
• For other fuel cells, the bolt spacing must be 3.6 to 5.7 in (91 to 145 mm). The mount can also be used off the fuel cell
• An open barrel crimper is needed for the stamped contacts. Chassis harness wiring and wire loom are not included

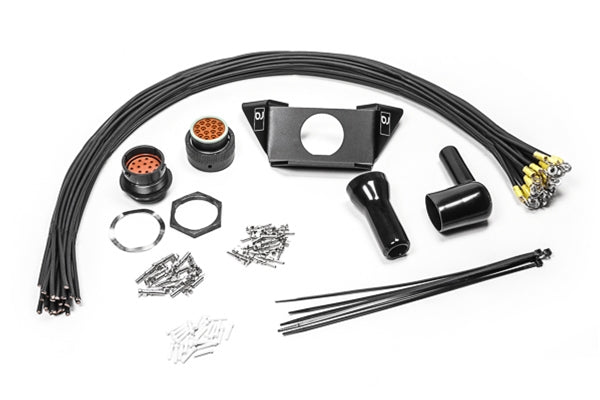

Included

• Anodized aluminum mounting bracket
• Sealed female CPC bulkhead connector and sealed male CPC connector
• 16 female and 16 male stamped 14-10 AWG open barrel contacts
• Straight and right-angle black rubber boots
• Bulkhead hex nut and locking wave washer
• 25 plugs for empty cavities
• 5 cable zip-ties
• 26 labeled 10 AWG wires with pre-terminated ring terminals

Fitment

• Radium FCST-X fuel cell surge tank and RA-Series fuel cells. (Source: Radium Engineering)
