Radium Engineering Fuel Filter Kit 2015+ Ford Mustang S550 and S650, Microglass Filter - 20-1819-05

Radium Engineering 20-1819-05 fuel filter kit with microglass filter for the 2015+ Ford Mustang (S550 and S650). Mounts under the brake booster near the left-hand strut tower.

• Microglass filter element
• Mounts to the OEM threaded holes under the brake booster near the LH strut tower
• Reflective, powder-coated aluminum heat shield that also protects the fuel system from header heat
• Billet anodized aluminum 2-piece clamp holds the filter inside the heat shield
• Designed for aftermarket fuel pump hangers, which typically eliminate the internal post-pump filter, so a low-micron filter is required
• No cutting or drilling required
• Rated for alternate fuels such as methanol, ethanol and E85
• Manual transmission: the 2-bolt flange clutch line bracket may need to be moved slightly to clear the fuel filter inlet fitting

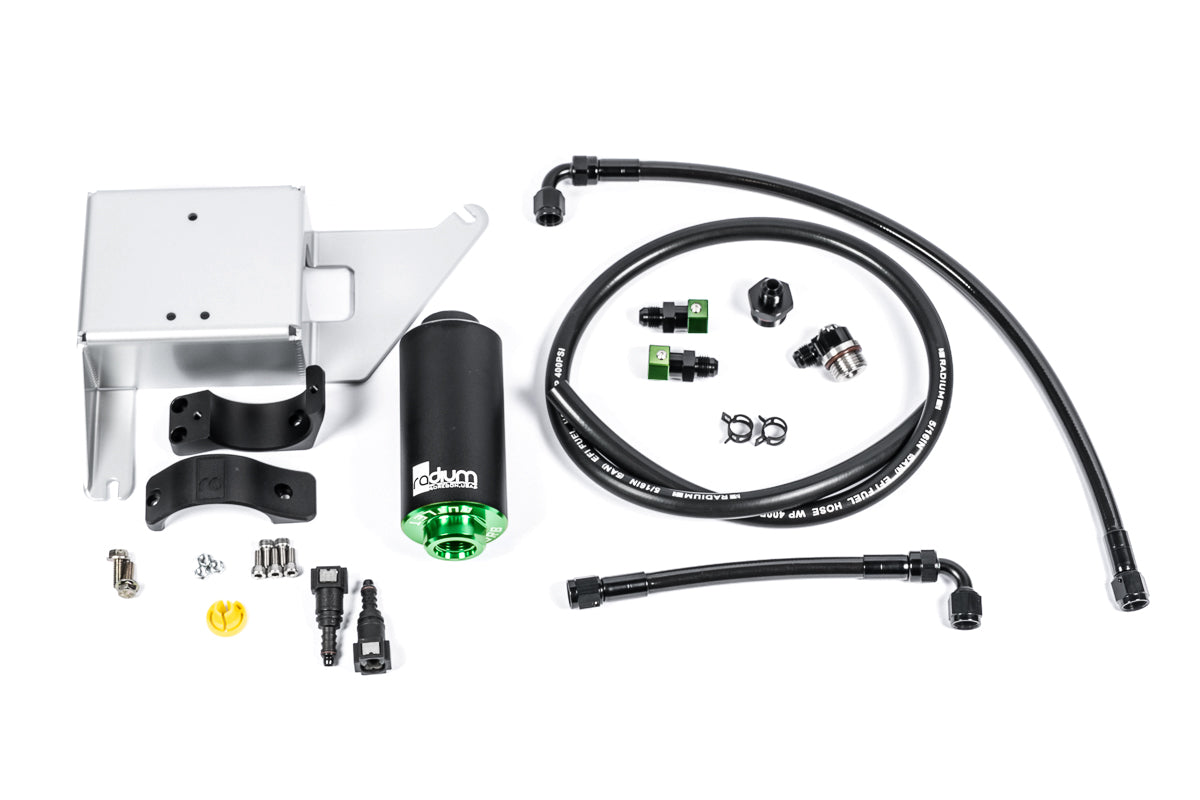

Included

• Billet aluminum filter with selectable element
• Powder-coated aluminum heat shield bracket
• 2-piece anodized billet aluminum filter mount
• SAE quick-connect to 6AN adapter fittings
• 6AN PTFE fuel lines (x2)
• 5/16 in EVAP line and hose ends
• Hex head flanged screws (x2)
• Stainless steel hardware
• 5/16 in spring clamps (x2)
• SAE disconnect tool

Fitment

• 2015-2023 Ford Mustang (S550), all trims, excluding RHD. (Source: Radium Engineering)
• 2024+ Ford Mustang (S650), all trims, excluding RHD. (Source: Radium Engineering)
