Radium Engineering Fuel Filter Mount 10-15 Chevrolet Camaro - 20-1328

Radium Engineering 20-1328 fuel filter mount for the 10-15 Chevrolet Camaro. M10 stainless bolts secure a thick aluminum bracket to three threaded chassis bosses, and a billet aluminum 60mm clamp holds the filter.

• Mounts next to the rear of the transmission on the right-hand side
• Positioned away from the exhaust with enough ground clearance
• No permanent modifications required
• Anodized billet aluminum clamp and bracket
• 60mm (2.36 in) clamp diameter
• Stainless steel screws
• FRONT marking and engraved arrow help prevent upside-down or backward installation
• Fuel filter and 10AN ORB fittings are sold separately
• Aftermarket fuel lines and fittings must be configured separately
• The clamp also works with an external Bosch 0 580 254 044 fuel pump

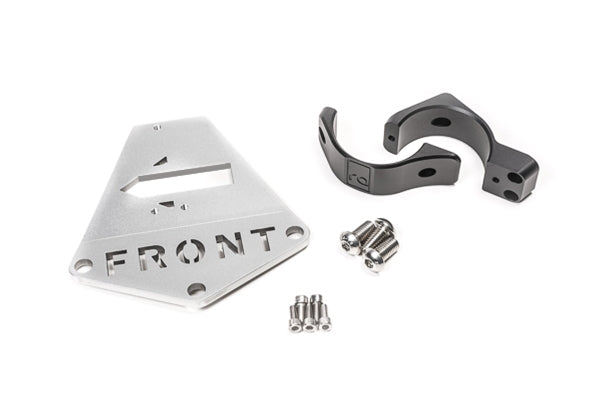

Included

• Anodized aluminum mounting bracket
• Anodized aluminum filter clamp
• Stainless steel mounting hardware

Fitment

• 10-15 Chevrolet Camaro. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
