Radium Engineering Fuel Hanger 2022+ Honda Civic Type-R (FL5) Walbro F90000267/274/285 - 20-1092

Radium Engineering 20-1092 fuel hanger for the 2022+ FL5 Honda Civic Type-R, set up for Ti Automotive Walbro F90000267, F90000274 or F90000285 pumps.

• Drop-in installation, aluminum and stainless construction
• Merged 10AN ORB female pump-out port
• Runs 1 to 3 pumps, brushless capable
• Three 1-way fill valves in the collector, each rated at 355 LPH
• Anti-rotation electrical terminals and high-current hardware
• Compatible with gas, methanol and E85
• An external regulator and low-micron filter are required; both come in the Radium plumbing kits
• Single-pump setups can reuse OEM pump wiring, but upgrading the wiring is recommended. Each additional pump needs its own relay and fuse
• Compatible pumps: Ti Automotive Walbro F90000267, F90000274, F90000285; Fuelab 49614 (brushless) and Protec 11928 (brushless). The Fuelab and Protec pumps require part 13-1187, a different pump block, submersible hose for 10mm barbs and EFI hose clamps

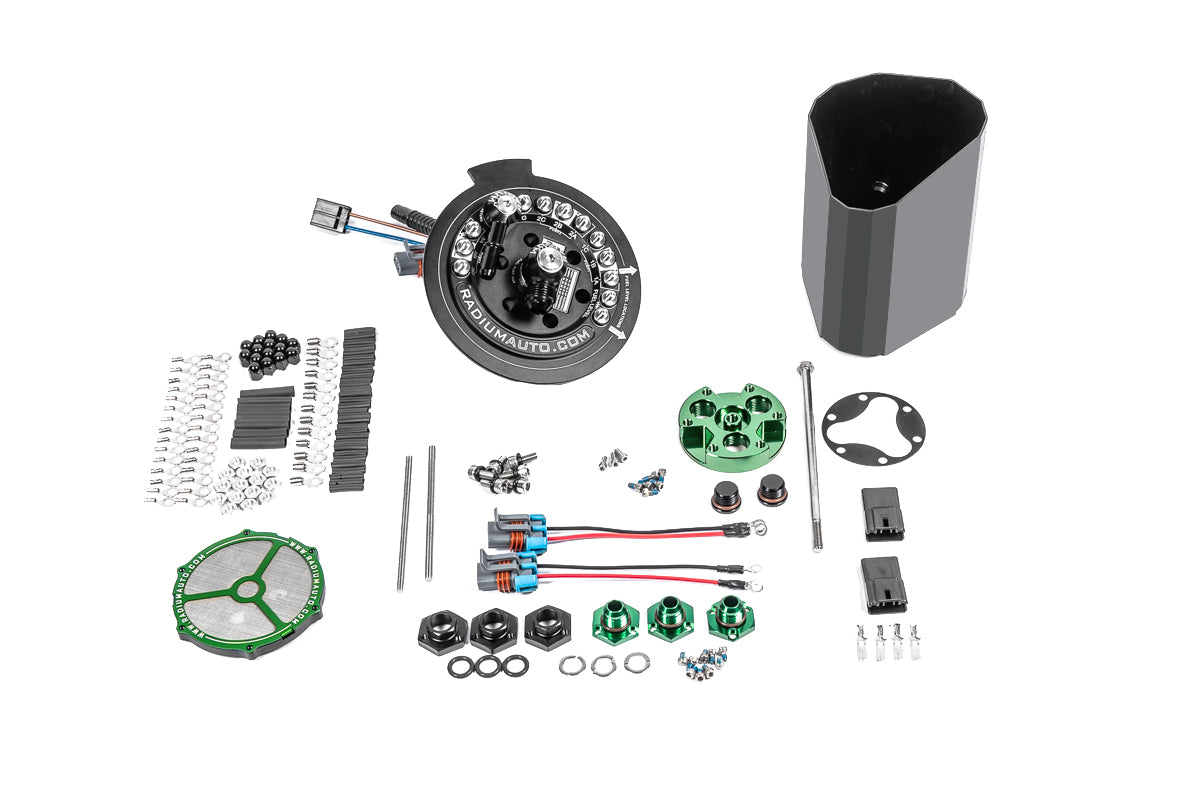

Included

• Partially assembled hanger
• Pump mounting hardware for 1 to 3 pumps
• External wiring electrical kit

Fitment

• 2022+ Honda Civic Type-R (FL5). Not compatible with the FK8 Type-R. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
