Radium Engineering Fuel Hanger 90-93 Acura Integra, 88-91 Honda Civic/CR-X, Walbro F90000267/274/285 or Brushless Pumps - 20-1792

Radium Engineering 20-1792 fuel hanger for the 90-93 Acura Integra and 88-91 Honda Civic and CR-X. Configured for one Walbro F90000267/274/285 or brushless fuel pump (pump not included).

• Replaces the stock fuel pump assembly; the pump sits in the factory collector bowl for fuel starvation protection
• Configured for one aftermarket pump. A second pump requires the 20-1797 dual pump add-on (sold separately)
• Compatible pumps: Walbro F90000267, F90000274, F90000285, F90000295, Ti Automotive E5LM (brushless), Protec 11928 (brushless), Fuelab 49614 (brushless), DeatschWerks DW440 (brushless) and DW810 (brushless)
• The Walbro F90000295 and Ti Automotive E5LM do not have a check valve
• Pump outlet: 8AN ORB (3/4"-16) female on the top plate, with a preinstalled 6AN male fitting
• Return inlet: 6AN ORB (9/16"-18) female on the top plate, with a 6AN male fitting provided
• Drop-in installation with no cutting or modification of sheet metal or tank
• Anodized aluminum construction with stainless steel hardware and clamps
• High-current electrical hardware: anti-rotation stainless steel studs, anodized aluminum acorn nuts and ETFE-insulated in-tank wiring
• Rated for gasoline, methanol and E85
• All fittings are machined low enough to clear trunk sheet metal
• Fuel pump filter sock included in the kit for the Walbro and Ti Automotive pumps; the Protec, Fuelab and DeatschWerks pumps include their own sock
• Upgraded pump wiring is recommended so the pump receives full power. Universal pump wiring kits are sold separately

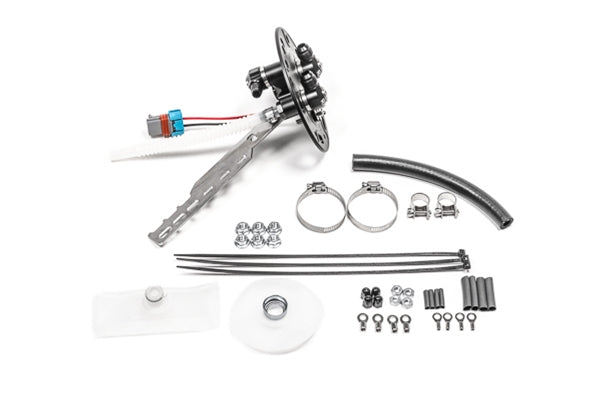

Included

• Partially assembled hanger
• Hardware for one pump
• Electrical parts for external wiring at the top hat

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
