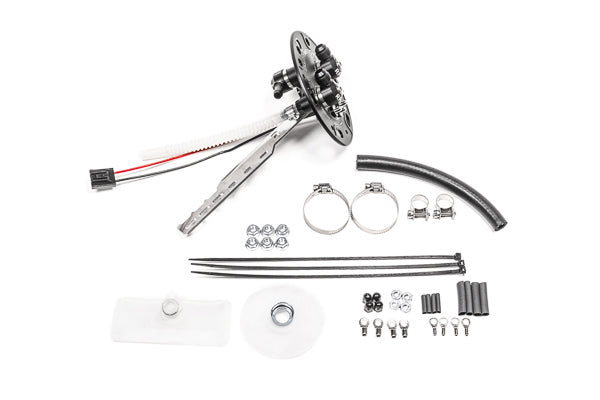

Radium Engineering Fuel Hanger 90-93 Acura Integra, 88-91 Honda Civic/CR-X, Walbro GSS342 / AEM 50-1200 - 20-1790

Radium Engineering 20-1790 fuel hanger for the 90-93 Acura Integra and 88-91 Honda Civic and CR-X. Configured for one Walbro GSS342 or AEM 50-1200 fuel pump (pump not included).

• Replaces the stock fuel pump assembly; the pump sits in the factory collector bowl for fuel starvation protection
• Configured for one aftermarket pump. A second pump requires the 20-1796 dual pump add-on (sold separately)
• Compatible pumps: AEM 50-1000, AEM 50-1200, AEM 50-1220, AEM 50-1230, AEM 50-1235 and Walbro GSS342. The AEM 50-1230 and 50-1235 do not have a check valve
• Pump outlet: 8AN ORB (3/4"-16) female on the top plate, with a preinstalled 6AN male fitting
• Return inlet: 6AN ORB (9/16"-18) female on the top plate, with a 6AN male fitting provided
• Drop-in installation with no cutting or modification of sheet metal or tank
• Anodized aluminum construction with stainless steel hardware and clamps
• High-current electrical hardware: anti-rotation stainless steel studs, anodized aluminum acorn nuts and ETFE-insulated in-tank wiring
• Rated for gasoline, methanol and E85
• All fittings are machined low enough to clear trunk sheet metal
• Fuel pump filter sock included in the kit for the Walbro GSS342; AEM pumps include their own sock
• A single Walbro GSS342 (255 LPH) installation can reuse the OEM pump wiring. Upgraded wiring is recommended so the pump receives full power. Universal pump wiring kits are sold separately

Included

• Partially assembled hanger
• Hardware for one pump
• Electrical parts for external wiring at the top hat

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
