Radium Engineering Fuel Hanger Plumbing Kit 2015-2017 Ford Mustang (S550), Stainless Filter - 20-1816-03

Radium Engineering 20-1816-03 fuel hanger plumbing kit with stainless filter for the 2015-2017 Ford Mustang (S550). Runs a return fuel system from the Radium fuel pump hanger to the engine bay.

• Includes everything needed to run a return fuel system from the hanger to the engine bay
• Includes a multi-port regulator (MPR) and a check valve fuel filter in a heat shield bracket
• 6AN PTFE fuel lines and three 8AN PTFE fuel lines
• Includes the 20-0806 fuel hanger FPR block-off kit, which disables the hanger's built-in regulator so an external regulator can be used
• Billet fuel/brake line retainers and the fittings needed to connect to the port injection fuel rail
• On manual transmission vehicles, the 2-bolt flange clutch line bracket must be moved slightly to clear the fuel filter inlet fitting
• For use with a Radium Mustang fuel pump hanger (sold separately)

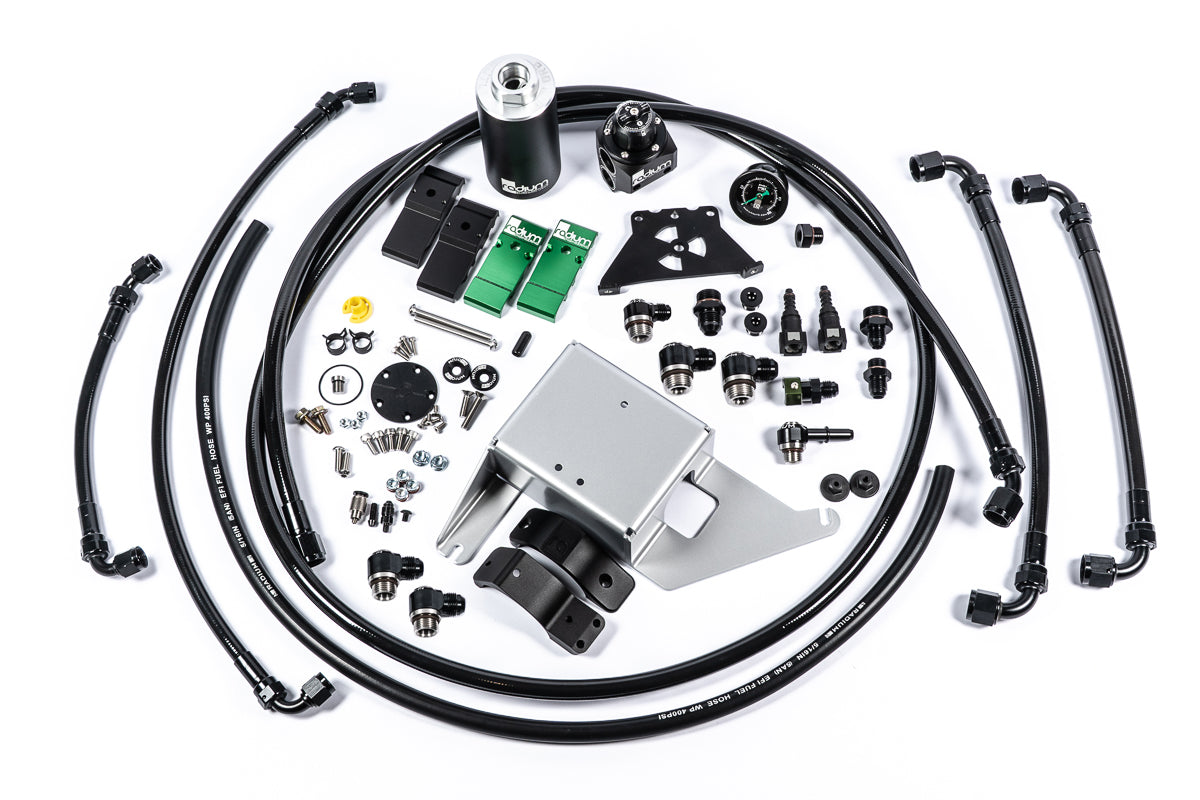

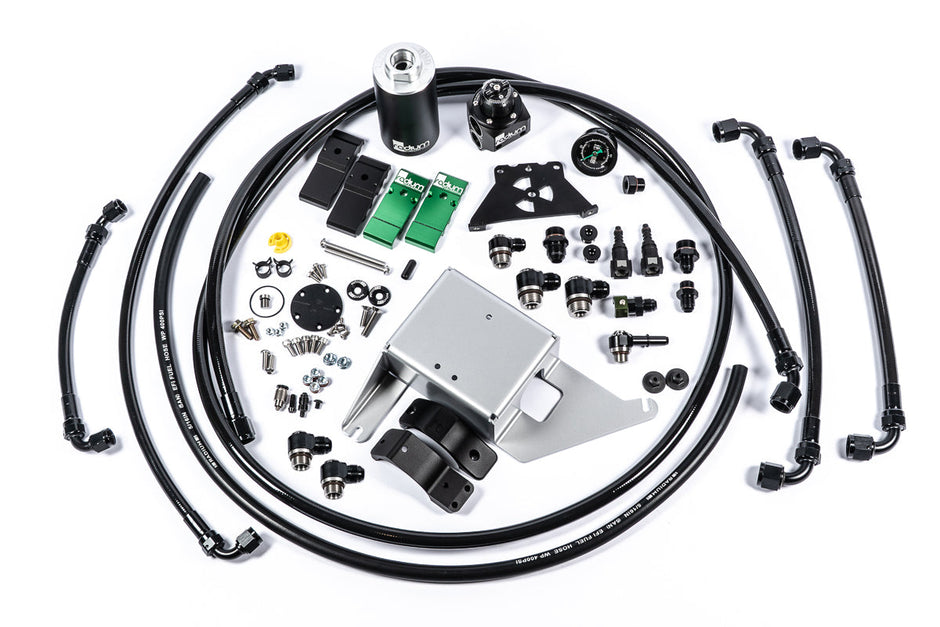

Included

• 20-0806 fuel hanger FPR block-off kit
• 6AN PTFE fuel lines
• Three 8AN PTFE fuel lines
• Check valve fuel filter (stainless) in heat shield bracket
• Multi-port regulator (MPR)
• Billet fuel/brake line retainers
• Fittings to connect to the port injection fuel rail

Fitment

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
