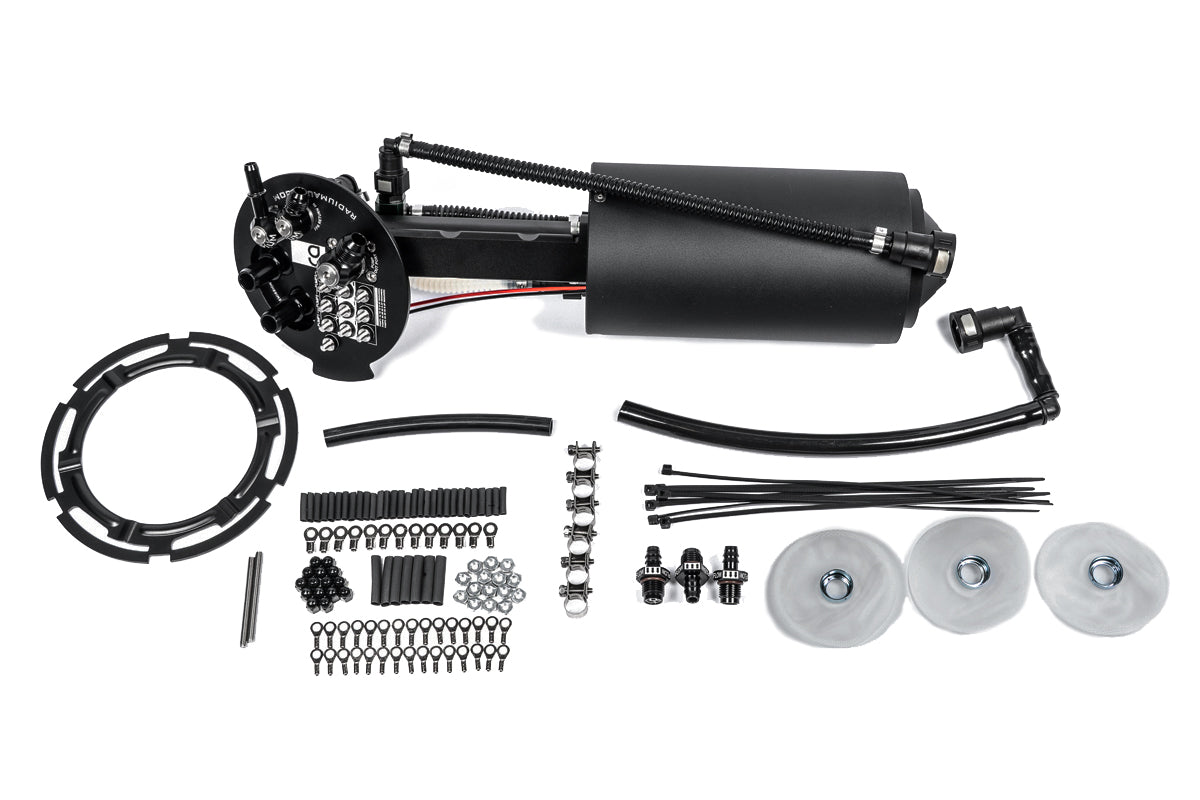

Radium Engineering Fuel Hanger Surge Tank Chevrolet Corvette 2020+ (Ti Automotive E5LM) - 20-1111

Radium Engineering 20-1111 fuel hanger surge tank for the 2020+ Chevrolet Corvette, set up for the Ti Automotive E5LM fuel pump. Pumps are not included.

• Drop-in surge tank for the RH fuel tank. The OEM fuel pump module stays in its original location
• Supports 1, 2 or 3 aftermarket fuel pumps. Brushless pump compatible
• Integrated siphon jet pump for fuel starvation protection (draws 15-45 LPH depending on fuel pressure)
• Three one-way fill valves, each flowing 355 LPH
• One-piece anodized aluminum collector box, replenished by fuel returning from the pressure regulator
• 10AN ORB feed port with low profile 8AN male fitting, 8AN ORB return port with low profile 6AN male fitting, 6AN ORB lift pump port with quick connect fitting
• Anti-rotation stainless electrical studs with nonconductive acorn nuts and ETFE insulated in-tank wiring
• Reuses the large OEM EVAP connections
• Rear subframe and drivetrain assembly must be removed to access the OEM fuel tanks
• Pumps marked as requiring a check valve need the Radium 20-1534 Universal Check Valve Kit

Included

• 8AN male fitting for pump outlet
• 6AN male fitting for aftermarket return
• 8.5mm barb hose end for OEM return
• 6.5mm barb fitting for OEM vent
• OEM fuel sensor mount
• Venturi siphon jet pump
• Fuel resistant submersible tubing and ETFE insulated wiring
• Stainless hardware
• Pump inlet filtration
• 6AN ORB plug for the unused lift pump port

Fitment

• Chevrolet Corvette, 2020+ (RH C8 fuel tank). (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
