Radium Engineering Fuel Hanger Surge Tank Mazda RX-7 FD, Walbro F90000267/274/285 (Pumps Not Included) - 20-0952

Radium Engineering 20-0952 fuel hanger surge tank for the Mazda FD RX-7, set up for Walbro F90000267, F90000274 and F90000285 pumps. Pumps are not included.

• Permits 1-3 surge pumps plus 1 lift pump
• A lift pump is required on all installations
• 8AN male pump outlet fitting and 6AN male return inlet fitting
• Fuel starvation protection
• Stainless steel mesh triple pump filter
• Gasoline and ethanol compliant
• Compatible pumps: Walbro F90000267, F90000274, F90000285, F90000295, Protec 11928, Fuelab 49614, Deatschwerks DW810
• Walbro F90000295 and Deatschwerks DW810 do not have a check valve. One Radium 20-1534 is required for each of these pumps used
• Protec 11928, Fuelab 49614 and Deatschwerks DW810 do not fit the included pump strainer. Radium 13-1187 is required to use these pumps

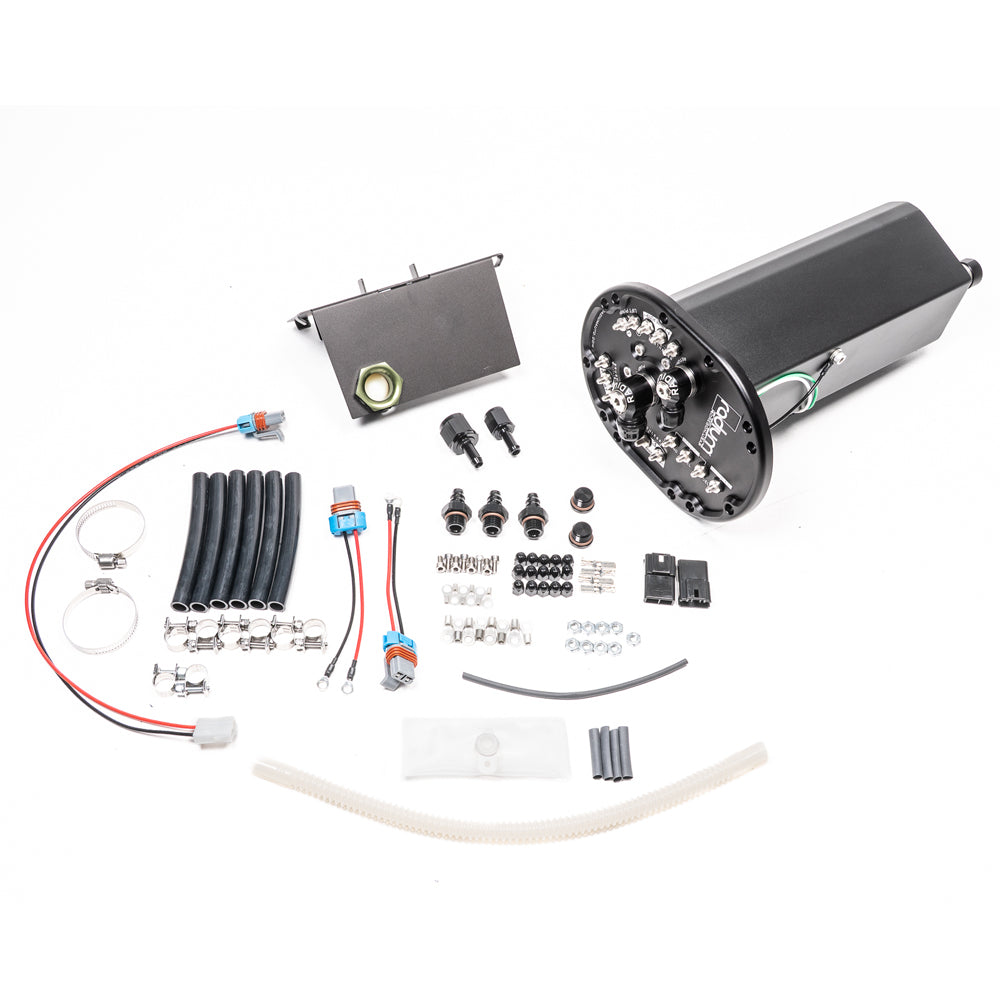

Included

• Fuel pump hanger
• Hardware to assemble pumps into the hanger
• Filter socks
• Miscellaneous installation hardware

Fitment

• 93-95 Mazda FD RX-7 (US). (Source: Radium Engineering)
• 92-02 Mazda FD RX-7 (JDM). (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
