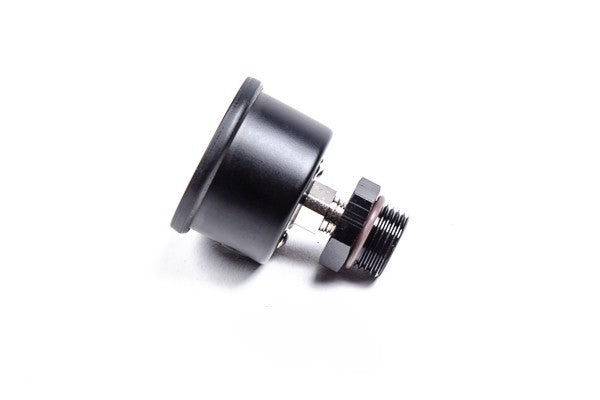

Radium Engineering Fuel Pressure Gauge 0-100 PSI with 8AN ORB Adapter - 20-0075

Radium Engineering 20-0075 fuel pressure gauge, 0-100 PSI, with 8AN ORB to 1/8" NPT adapter. Universal fitment for fueling applications.

• Range 0-100 psi (0-6.9 bar), accuracy +/-2%
• Acrylic lens with silicone-filled dial to reduce needle vibration (the internal silicone fluid bubble is normal)
• Stainless steel case, 1-5/8" OD (1-3/4" OD bezel), black bezel and housing
• Nickel-plated male 1/8" NPT fitting
• Use PTFE-based thread sealant on the 1/8" NPT threads. Hand tighten, then 1.5 to 3 turns with a wrench. Do not thread the gauge in by gripping the body
• Over-pressurizing the gauge can permanently misalign the needle calibration

Included

• 0-100 psi fuel pressure gauge
• 8AN ORB to 1/8" NPT adapter

Fitment

• Universal. Suitable for all fueling applications. (Source: Radium Engineering)
