Radium Engineering Fuel Pressure Regulator Housing, No Top Insert - 20-0014

Radium Engineering 20-0014 fuel pressure regulator housing with no top insert. Universal housing built around common OEM Bosch regulator inserts; the regulator top is not included.

• Compact billet 6061 aluminum housing, laser etched and anodized
• Top is secured with a stainless steel snap ring, removable with snap-ring pliers
• Two main high-pressure ports are 6AN ORB, with an integrated 6AN male return port
• 1/8 NPT female port for a gauge or pressure transducer
• Bosch regulator tops are vacuum referenced at 1:1 and are not adjustable
• Exact minimum, static and maximum pressures depend on the fuel pump flow rate

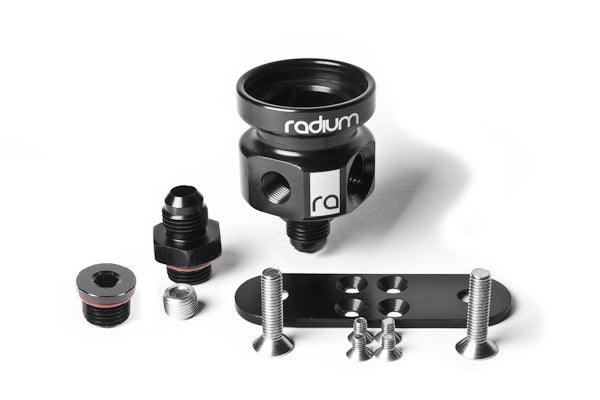

Included

• Billet 6061 aluminum housing
• 6AN male adapter fitting
• 6AN ORB plug fitting
• 1/8-27 NPT port plug
• Stainless steel mounting hardware
• Stainless steel snap retaining ring
• Anodized aluminum mounting bracket

Includes everything needed except the regulator top insert.

Fitment

• Universal housing for OEM Bosch regulator top inserts. Radium Engineering lists the following applications for the Bosch inserts: Audi 1.8L Turbo, Ford Falcon BA/BF/FG XR6 Turbo, Ford Territory Turbo, FPV F6 Typhoon Turbo, Porsche 911 (996) Turbo, Porsche 911 (997) Turbo, Volkswagen 1.8L Turbo. (Source: Radium Engineering)
