Radium Engineering Fuel Pressure Regulator with 3.0 Bar Bosch Top - 20-0010-00

Radium Engineering 20-0010-00 fuel pressure regulator with a 3.0 bar Bosch top. Ships assembled with the Bosch regulator unit installed in the billet aluminum housing.

• Rated to 3 bar (43.5 psi) at 255 lph. Exact minimum, static and maximum pressures are influenced by the flow rate of the fuel pump being used
• Bosch top is vacuum referenced at a 1:1 ratio and is not adjustable
• Billet aluminum housing, laser etched and anodized
• Two 6AN ORB high-pressure ports and an integrated 6AN male return port
• 1/8 NPT female port for a gauge or pressure transducer
• Stainless steel snap ring

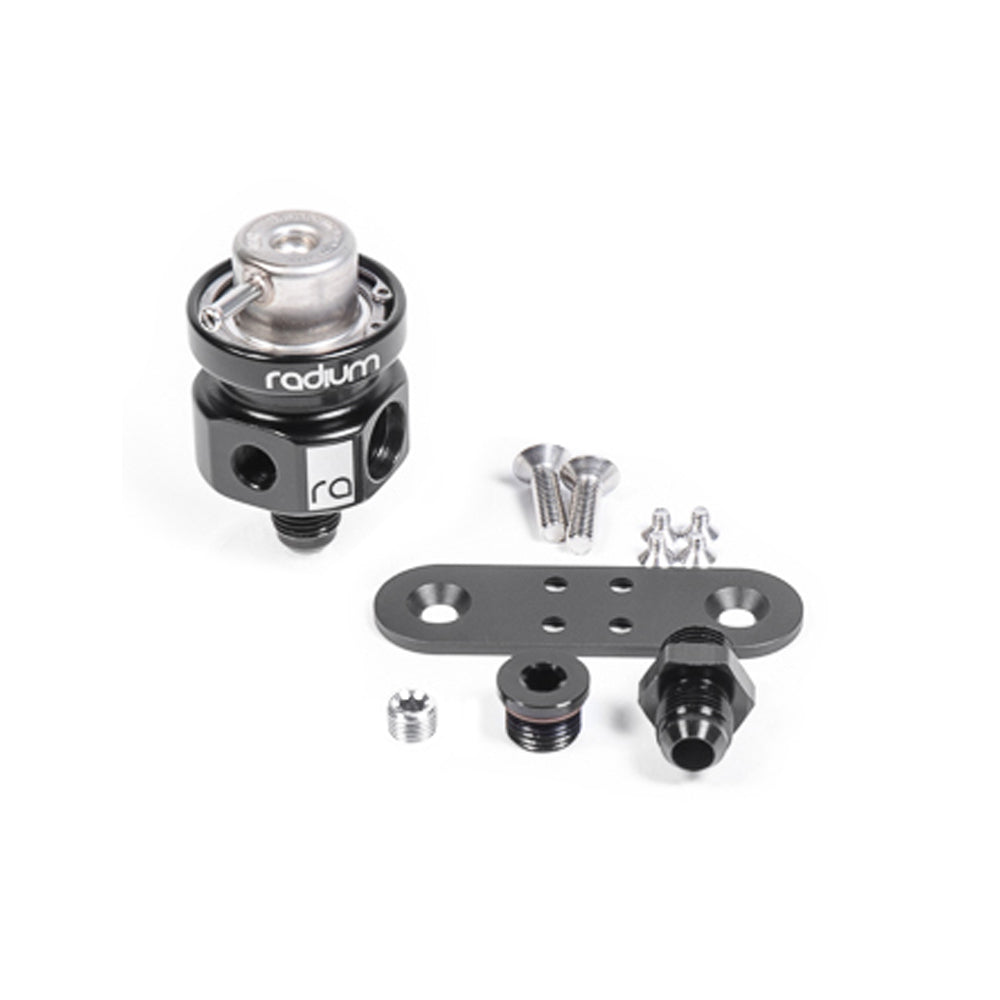

Included

• Billet 6061 aluminum housing with 3.0 bar Bosch regulator top installed
• 6AN male adapter fitting
• 6AN ORB plug fitting
• 1/8-27 NPT port plug
• Stainless steel mounting hardware
• Stainless steel snap retaining ring
• Anodized aluminum mounting bracket

Fitment

• Universal. Radium does not list vehicle fitment for this part number. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
