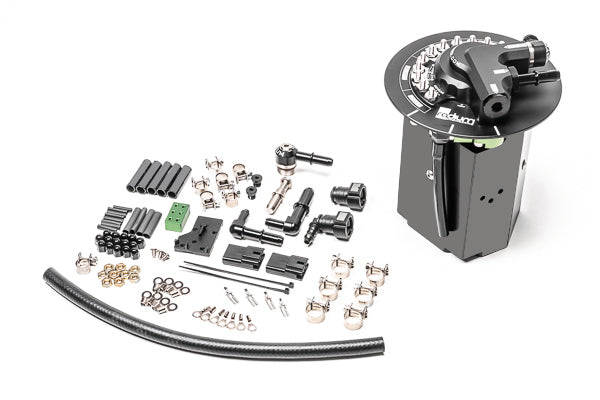

Radium Engineering Fuel Pump Hanger 2008-2017 GM Cars, AEM 50-1220 / DW440 (Pumps Not Included) - 20-1320

Radium Engineering 20-1320 fuel pump hanger for 2008-2017 GM cars including the Cadillac CTS and CTS-V, Chevrolet Camaro, Chevrolet SS and Pontiac G8. Designed for AEM 50-1220 pumps and the brushless Bosch pumps in DeatschWerks DW440 kits. Pumps are not included.

• Replaces the factory in-tank pump module and supports 1, 2 or 3 aftermarket pumps
• One-piece anodized aluminum collector box with three one-way fill valves (355 LPH each), refilled by the regulator return and jet pump crossover
• Two pump outlet ports and one return port, all 3/4 in-16 (8AN ORB)
• The OEM venturi jet pump consumes 15-45 LPH depending on fuel pressure, which must be factored into pump sizing
• Retains the OEM fuel pressure sensor and fuel level sensor
• Eliminates the OEM fuel pressure regulator, so an aftermarket regulator is required
• Pre-pump filtration for all three pumps in separate chambers. The OEM post-pump filter is eliminated, so a low-micron filter is needed downstream
• Anti-rotation electrical studs. Upgraded wiring is recommended and universal wiring kits are sold separately
• Also listed by Radium for this part: Bosch 0 580 454 100 (no internal check valve, best run as two pumps full time with the OEM PCM) and the stock pumps from the Cadillac CTS-V, Holden Commodore VE, Chevrolet Omega and Pontiac G8
• Plumbing kits are sold separately: 20-1325-03 (10 micron stainless) and 20-1325-05 (6 micron microglass) for the 2008-2015 Cadillac CTS-V with Radium 20-0362 fuel rails, and 20-1326-03 (10 micron) and 20-1326-05 (6 micron) for the 2010-2015 Camaro LS3/LS7/L99

Included

• Components for 1, 2 or 3 pumps (some may go unused)
• Two SAE quick-connect fittings for the factory feed line, plus SAE quick-connect plugs to cap it
• 8AN ORB to 6AN male banjo fitting for the return port, and a spare 8AN ORB to 6AN male fitting for the second outlet
• Two billet aluminum fuel level sensor mounts
