Radium Engineering Fuel Pump Hanger 2011+ Ford Mustang/Shelby, TI Automotive E5LM Brushless - 20-1801

Radium Engineering 20-1801 fuel pump hanger for the 2011+ Ford Mustang and Shelby (S197/S550/S650). Built for the TI Automotive BKS1001 (E5LM) brushless fuel pump (pump not included).

• Drop-in replacement for the OEM in-tank fuel pump module; uses the OEM fuel level sender
• Permits 1 or 2 pumps
• The BKS1001 pump has no integrated check valve, so two bolt-on check valves are included so the pumps can be staged
• Integrated 1:1 adjustable fuel pressure regulator, vacuum referenced. Four 10-32 vacuum fittings are included
• Fuel starvation protection
• Pump outlet: female thread for 8AN ORB (3/4-16). Two low-profile SAE quick connects are provided for S197 and S550/S650 feed lines
• Return port: female thread for 6AN ORB (9/16-18), used only with the 20-0806 block-off kit. A plug is preinstalled
• Anodized aluminum construction with stainless steel hardware
• High-current electrical hardware with new anti-rotation terminals; fuel-resistant tubing and wiring
• Compatible with gasoline, methanol and ethanol (E85)
• The venturi jet pump consumes 15-45 LPH from the feed line, depending on fuel pressure
• The OEM wiring is rated for 15-30 A depending on trim. Upgraded wiring kits are recommended (one per aftermarket pump, sold separately)
• The hanger removes the in-tank low-micron filter. An external low-micron filter is required, either in a Radium plumbing kit or the Radium fuel filter kit with the stock feed line on 2015+ models

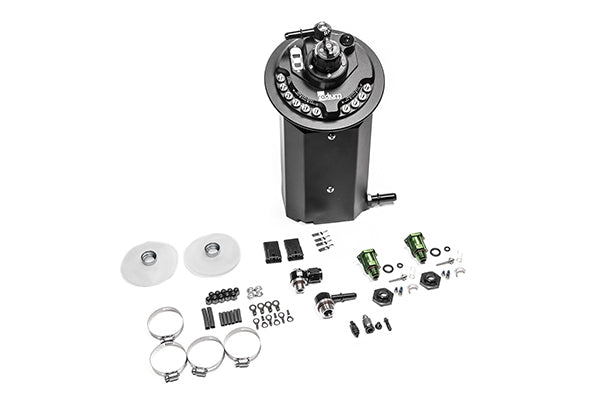

Included

• Fuel pump hanger
• Two bolt-on check valves
• Electrical hardware for the pump(s) and OEM level sender

Pumps are not included or pre-installed.

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
