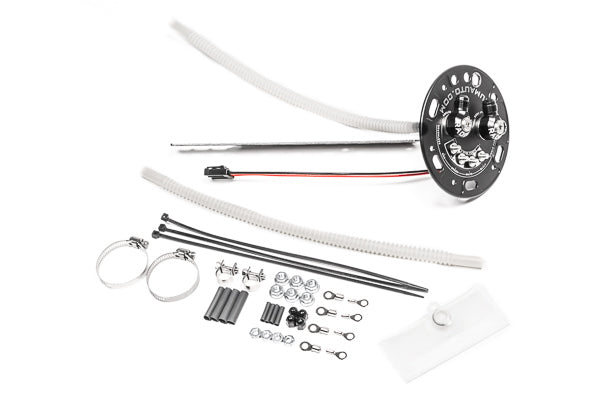

Radium Engineering Fuel Pump Hanger 90-05 Acura NSX, Walbro GSS342 / AEM 50-1200 - 20-2790

Radium Engineering 20-2790 fuel pump hanger for the 90-05 Acura NSX. Configured for one Walbro GSS342 or AEM 50-1200 fuel pump (pump not included).

• Positioned in the factory collector bowl for fuel starvation protection
• Supports one pump. A second pump requires the 20-2796 dual pump add-on (sold separately). The add-on is not compatible with brushless pumps
• Compatible pumps: AEM 50-1000, AEM 50-1200, AEM 50-1220, AEM 50-1230, AEM 50-1235 and Walbro GSS342. The AEM 50-1230 and 50-1235 do not have a check valve
• Fuel outlet: 8AN ORB (3/4"-16) female on the top plate, with a preinstalled 6AN male fitting
• Return inlet: 6AN ORB (9/16"-18) female on the top plate, with a preinstalled 6AN male fitting
• Drop-in installation with no cutting or modification of sheet metal or tank
• Anodized aluminum construction with stainless steel hardware and clamps
• High-current electrical hardware: anti-rotation stainless steel studs, non-conductive anodized aluminum acorn nuts and ETFE-insulated in-tank wiring; hermetically sealed electrical connections
• Rated for gasoline, methanol and E85
• Fittings are machined low enough to clear factory sheet metal
• Fuel pump filter sock included in the kit for the Walbro GSS342; AEM pumps include their own sock
• A single Walbro GSS342 (255 LPH) installation can reuse the OEM pump wiring. Upgraded wiring is recommended so the pump receives full power. Universal pump wiring kits are sold separately

Included

• Partially assembled hanger
• Hardware for one pump
• Electrical parts for external wiring at the top hat

Fitment

• 90-05 Acura NSX, all models and trims, RHD and LHD. (Source: Radium Engineering)
