Radium Engineering Fuel Pump Hanger Acura Integra 1994-2001, Honda Civic 1992-2000 - 20-0792-00

Radium Engineering 20-0792-00 fuel pump hanger for the 1994-2001 Acura Integra and 1992-2000 Honda Civic. Fits Walbro F90000267, F90000274 and F90000285 fuel pumps.

• Drop-in installation with no sheet metal or tank cutting
• Anodized aluminum construction with stainless steel hardware and clamps
• Merged 8AN ORB (3/4"-16) female pump-out port, with a preinstalled 6AN male fitting for aftermarket feed lines
• Includes an 8.5mm barbed adapter for reusing 94-95 Integra and 92-95 Civic OEM feed lines, and an SAE quick connect for reusing 96-01 Integra and 96-00 Civic OEM feed lines
• 4AN ORB (7/16"-20) female return port, with a preinstalled 6.5mm barbed fitting for the OEM return line and a 6AN male fitting for aftermarket return lines
• 96-01 Integra and 96-00 Civic require the OEM return hose to be extended
• Includes a fuel pump filter sock, high-current electrical hardware and anti-rotation electrical terminals
• Rated for gasoline, methanol and E85
• Supports 2 pumps with the 20-0797-00 dual pump add-on (sold separately)
• Radium tested pumps: Walbro F90000267, F90000274, F90000285 and F90000295. The F90000295 has no check valve and needs the 20-1534 check valve kit, and it cannot be used as the second pump
• Upgrading the OEM wiring is recommended so the pump receives full power

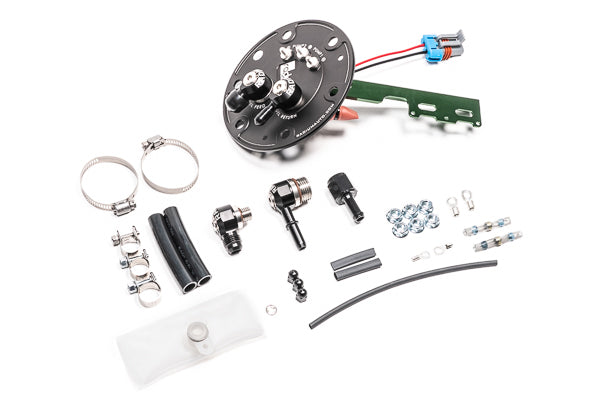

Included

• Partially assembled fuel pump hanger
• Hardware for installing one fuel pump
• Electrical parts for external wiring at the top hat

Fitment

• Acura Integra 1994-2001, all models and trims, RHD and LHD. (Source: Radium Engineering)
• Honda Civic 1992-2000, all models and trims, RHD and LHD. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
