Radium Engineering Fuel Pump Hanger Chevrolet Corvette C7 2014-2019, Pumps Not Included - 20-1010

Radium Engineering 20-1010 fuel pump hanger for the 2014-2019 Chevrolet C7 Corvette. Pumps are not included.

• Drop-in installation with no cutting or modification, reusing the OEM crossover jet pump siphon
• Integrated collector prevents fuel starvation, with two 1-way fill valves (355 LPH each)
• Merged 10AN ORB (7/8"-14) female pump-out port with an 8AN male fitting
• 8AN ORB (3/4"-16) female return inlet with a 6AN male fitting
• Compatible with various pumps, brushless pump capable, filter socks included
• Capable of two pumps with the 20-0937 dual pump add-on (sold separately)
• High-current stainless steel electrical studs and ETFE-insulated in-tank wiring
• Gasoline, methanol and E85 compatible
• The hanger eliminates the in-tank regulator and post-pump filter, so a fuel pressure regulator and filter are needed
• Radium tested pumps: AEM 50-1000 and 50-1200, Walbro GSS342, F90000267, F90000274, F90000285 and F90000295, Ti Automotive E5LM, Deatschwerks DW440 and DW810, Protec 11928, Fuelab 49614. The F90000295 and E5LM have no integrated check valve, and the kit includes a high-flow check valve for them. The Deatschwerks, Protec and Fuelab pumps have a 41-43mm body and need the optional 20-0441 pump clamp
• Single-pump installs can reuse OEM wiring, though upgrading the wiring is recommended

Included

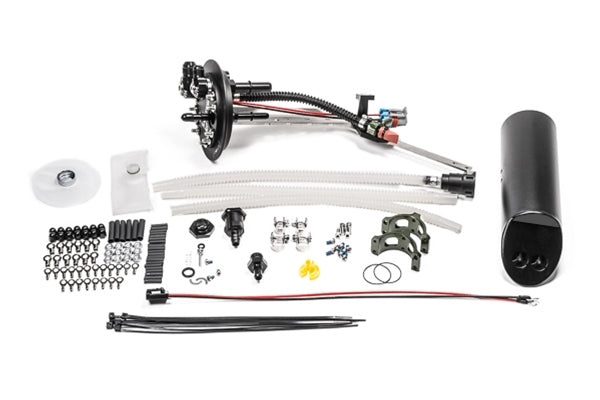

• Partially assembled fuel pump hanger
• Two styles of wiring harness
• Collector box
• Filter socks
• Hardware for installing the pump into the hanger
• Electrical parts kit for external wiring

Fitment

• Chevrolet C7 Corvette 2014-2019. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
