Radium Engineering Fuel Pump Hanger Early Subaru Impreza/WRX/STI Walbro GSS342/AEM 50-1200 - 20-0340-00

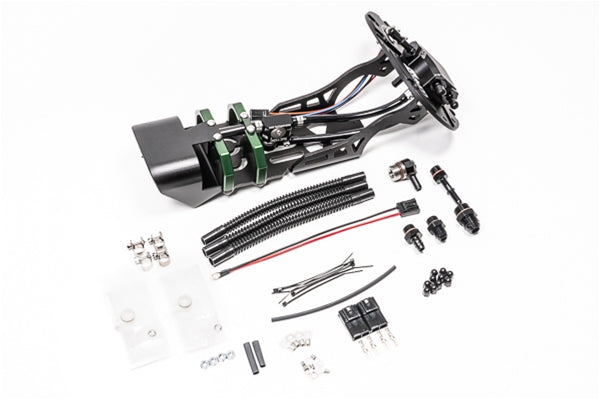

Radium Engineering 20-0340-00 billet aluminum fuel pump hanger for early Subaru and Saab 9-2X models, including the 1993-2007 Subaru Impreza (WRX and STi). Fits Walbro GSS342 or AEM 50-1200 pumps. Pumps not included.

• Mounts in the factory tank using the OEM gasket and hardware, and retains the fuel level sender and temperature sensors
• Supports one or two aftermarket high-flow pumps, which merge into a single 8AN ORB outlet. Crossover and return use 6AN ORB ports
• Compatible pumps: Walbro GSS342 (255 LPH), AEM 50-1200, AEM 50-1230 and AEM 50-1235 (the 50-1230 and 50-1235 have no check valve; add-on kit 20-1533 adds one)
• Anodized aluminum plate, collector box, check valve, venturi jet pump, fittings and dual pump mounts
• Laser-etched plate
• Collector box is designed to work in all gas tanks, including the smallest OEM baffle listed
• 1-way fill valve rated at 355 LPH keeps the pumps supplied during aggressive driving
• Venturi jet pump with an integrated pressure relief valve
• Stainless steel anti-rotation electrical terminals, acorn nuts and hardware
• Submersible rubber fuel hose and ETFE-insulated in-tank wiring
• Single-pump setups can reuse the OEM fuel pump controller. Upgrading the wiring is recommended. A DIY fuel pump wiring kit is sold separately

Included

• Hanger assembly with OEM hose adapter fittings for all listed model years
• SAE quick-disconnect fuel feed fitting (mid model years)
• SAE quick-disconnect return fitting (newer models)
• -6AN male fittings for aftermarket feed and return hoses
• Stainless steel crimp-on ring terminals and heat shrink

Fitment

Not compatible with the JDM WRX STi Spec C.
