Radium Engineering Fuel Pump Hanger Honda Del Sol Walbro F90000267/274/285 or Brushless Pumps - 20-3792

Radium Engineering 20-3792 fuel pump hanger for the Honda Del Sol, for Walbro F90000267/274/285 or brushless fuel pumps.

• Drop-in hanger that replaces the stock fuel pump assembly and holds one pump in the factory collector bowl
• No cutting or modification of the sheet metal or fuel tank required
• Anodized aluminum construction with stainless steel hardware and clamps
• Merged 8AN ORB female pump-out port
• Fuel outlet: 8AN ORB female (3/4"-16) on the top plate, with a preinstalled 6AN male fitting
• Return inlet: 6AN ORB female (9/16"-18) on the top plate, with a 6AN male fitting
• Fittings are low enough to clear the fuel pump access cover
• Stainless steel studs, non-conductive anodized aluminum acorn nuts, anti-rotation electrical terminals and ETFE-insulated in-tank wiring
• Rated for gasoline, methanol and E85
• Compatible pumps: Walbro F90000267, F90000274, F90000285, F90000295 (no check valve), Ti Automotive E5LM brushless (no check valve), Protec 11928 brushless, Fuelab 49614 brushless, DeatschWerks DW440 brushless and DW810 brushless
• Pump filter sock is included for the Walbro and Ti Automotive pumps and supplied by the pump manufacturer for the Protec, Fuelab and DeatschWerks pumps
• The pump is sold separately. A second pump requires the matching Radium dual pump add-on (sold separately), which cannot be used with brushless pumps

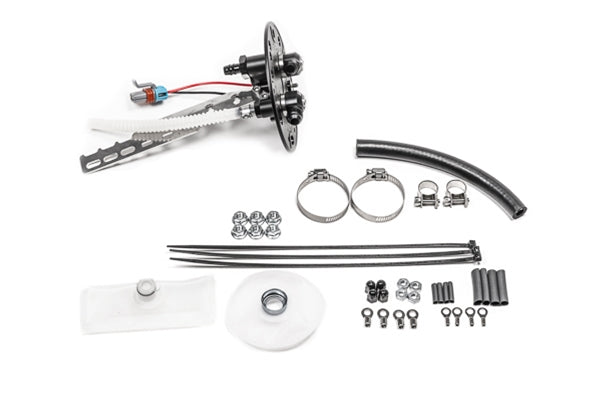

Included

• Partially assembled hanger
• Components for one compatible pump
• Electrical hardware kit

Fitment

• Honda Del Sol, all models and trims, LHD and RHD. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
