Radium Engineering Fuel Pump Hanger Honda Del Sol Walbro GSS342 or AEM 50-1200 - 20-3790

Radium Engineering 20-3790 fuel pump hanger for the Honda Del Sol, for Walbro GSS342 or AEM 50-1200 fuel pumps.

• Drop-in hanger that replaces the stock fuel pump assembly and holds one pump in the factory collector bowl
• No cutting or modification of the sheet metal or fuel tank required
• Anodized aluminum construction with stainless steel hardware and clamps
• Merged 8AN ORB female pump-out port
• Fuel outlet: 8AN ORB female (3/4"-16) on the top plate, with a preinstalled 6AN male fitting
• Return inlet: 6AN ORB female (9/16"-18) on the top plate, with a 6AN male fitting
• Fittings are low enough to clear the fuel pump access cover
• Stainless steel studs, non-conductive anodized aluminum acorn nuts, anti-rotation electrical terminals and ETFE-insulated in-tank wiring
• Rated for gasoline, methanol and E85
• Compatible pumps: AEM 50-1000, 50-1200, 50-1220, 50-1230 (no check valve), 50-1235 (no check valve) and Walbro GSS342
• Pump filter sock is included for the Walbro GSS342 and supplied by AEM for the AEM pumps
• A single Walbro GSS342 (255 LPH) can reuse the OEM wiring. Upgrading the wiring is recommended for full pump output
• The pump is sold separately. A second pump requires the matching Radium dual pump add-on (sold separately)

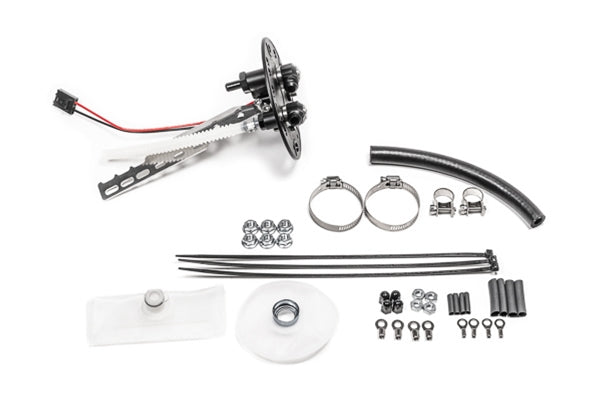

Included

• Partially assembled hanger
• Components for one compatible pump
• Electrical hardware kit

Fitment

• Honda Del Sol, all models and trims, LHD and RHD. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
