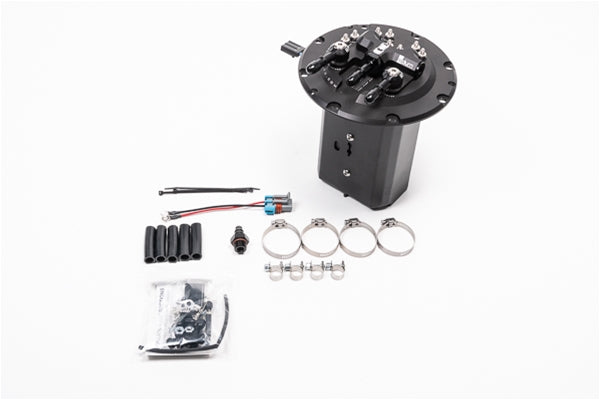

Radium Engineering Fuel Pump Hanger Late Subaru for Walbro F90000267/274/285, Pumps Not Included - 20-0782-00

Radium Engineering 20-0782-00 fuel pump hanger for late model Subaru, sized for Walbro F90000267, F90000274 and F90000285 pumps. Pumps are not included.

• Replaces the OEM unit and uses one or two high-flow aftermarket pumps. Safe with alternative fuels such as E85
• Mounts in the factory tank using the OEM gasket and replaces the OEM hold-down flange, with no permanent modifications
• Anodized aluminum collector box keeps fuel around the pumps. Two one-way fill valves flow 355 LPH each (710 LPH total)
• Venturi jet pump with integrated pressure relief valve moves fuel from the passive to the active side of the tank without restricting the return line
• One-way duckbill valve on the collector box keeps it full and reduces fuel spray noise
• Ports: 8AN ORB fuel pump out (3/4-16), 6AN ORB FPR return (9/16-18), 6AN ORB crossover (9/16-18). SAE quick connect fittings are preinstalled
• Stainless anti-rotation electrical studs with dedicated positive and negative connections per pump, and nonconductive acorn nuts
• Factory fuel level and temperature sensors are reused
• Tested pumps: Walbro F90000267, F90000274, F90000285 and F90000295 (the F90000295 has no check valve)
• 14-18 Forester XT and 15-21 WRX require the 20-0850 fuel level sender adapter (sold separately) and an aftermarket fuel pressure regulator, because the OEM system is returnless

Included

• Anodized aluminum, laser-engraved fuel hat
• Collector box with two one-way fill valves
• PRV venturi jet pump
• Stainless electrical terminals
• Stainless steel hardware
• SAE quick connect fittings
• Submersible fuel tubing

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
