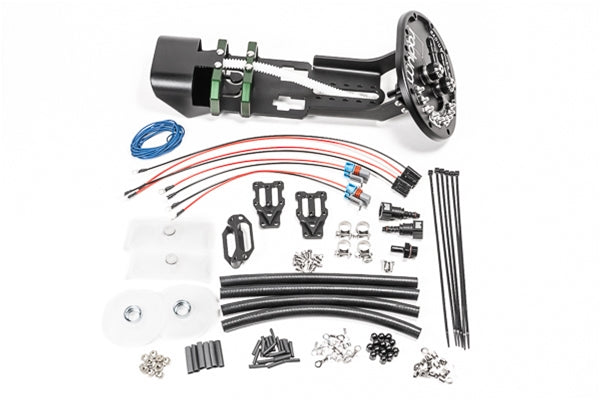

Radium Engineering Fuel Pump Hanger Mazda MX-5 Miata 1989-2005 (Pumps Not Included) - 20-1020

Radium Engineering 20-1020 fuel pump hanger for the 89-05 Mazda MX-5 Miata. Pumps are not included.

• Replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket pumps
• Reuses the OEM fuel level sensor
• Requires no modifications under the fuel pump access cover
• 1-piece anodized aluminum collector box with two 1-way fill valves, each rated at 355 LPH
• Retains the OEM internal fuel tank baffle
• Pump-out port: 7/8 in-14 (10AN ORB). Return port: 3/4 in-16 (8AN ORB)
• Multiple pre-pump filters included. Does not eliminate the OEM post-pump filter
• Pumps must have a 39 mm outer diameter. Verified pumps: AEM 50-1200, Walbro GSS342, Walbro F90000267, F90000274, F90000285, Ti Automotive E5LM
• Ti Automotive E5LM has no integrated check valve. If running two, use Radium 20-0798 check valve
• On 99-05 vehicles the OEM fuel pressure regulator is removed and an aftermarket regulator is required

Included

• SAE quick connect hose ends with barbs for 89-97 fuel lines (pump-out and return)
• 10AN ORB to SAE quick connect banjo fitting for 99-05 pump-out lines
• 8AN ORB to SAE quick connect banjo fitting for 99-05 return lines
• Anodized billet aluminum extension brackets for different tank variations
• Extension mount for later, deeper tanks
• Non-conductive anodized aluminum acorn nuts

Fitment

• 89-05 Mazda MX-5 Miata. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
