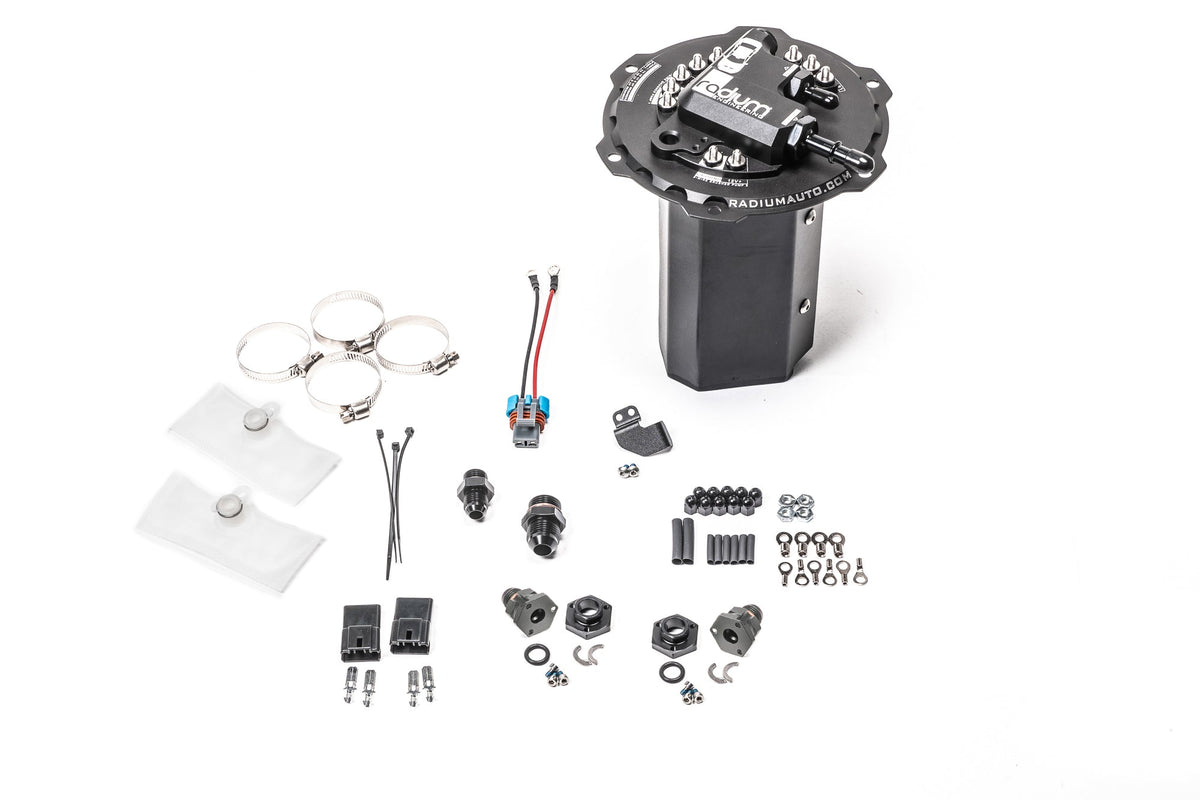

Radium Engineering Fuel Pump Hanger Mitsubishi Evo X, Walbro F90000267/274/285 (Pumps Not Included) - 20-1642

Radium Engineering 20-1642 fuel pump hanger for the Mitsubishi Lancer Evolution X, set up for Walbro F90000267, F90000274 and F90000285 fuel pumps. Pumps are not included.

• Completely replaces the factory in-tank fuel pump module and accepts 1 or 2 aftermarket fuel pumps
• Redesigned for improved fuel collection and easier installation
• Keeps the OEM level sender, fuel temperature sensor and fuel tank pressure sensor
• 8AN ORB female pump-out port and 6AN ORB female return port
• Collector box with 1-way fill valve (rated 355 LPH) and venturi jet pump siphon (consumes 15-45 LPH depending on fuel pressure)
• One-piece anodized aluminum collector box, billet aluminum hanger, black anodized adapter fittings
• Single merged fuel pump outlet, high current electrical connections and anti-rotation stainless terminals
• Stainless hardware and clamps
• Compatible with alternative fuels
• Sock filters provided for the Walbro F90000267, F90000274 and F90000285 pumps
• Removes the OEM post fuel pump filter, so install a low-micron aftermarket filter downstream
• Single-pump installs can reuse the OEM fuel pump controller wiring. Upgraded wiring is recommended for full pump performance, and universal pump wiring kits are sold separately, one per pump
• Upgrading the feed and return lines is recommended when running multiple pumps
• International vehicles without the OEM tank pressure sensor need Radium part 20-0421 (tank pressure plug, sold separately)

Included

• Partially assembled hanger with the components for 1 or 2 compatible pumps (some parts may go unused depending on setup)
• Electrical parts bag for the external wiring on top of the hanger
• Adapter fittings for direct connection to OEM fuel lines
• 8AN and 6AN adapter fittings for AN-style hoses

Fitment

• Mitsubishi Lancer Evolution X, 2008-2015. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
