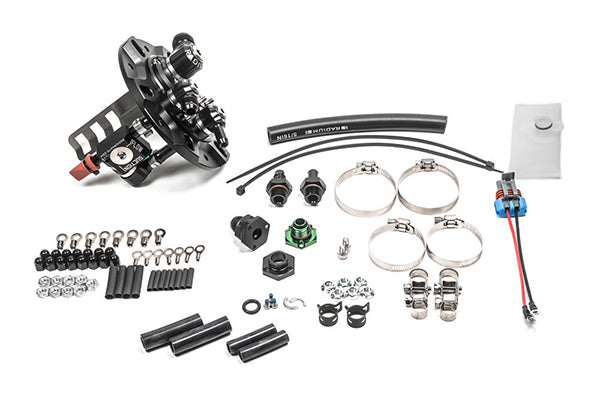

Radium Engineering Fuel Pump Hanger Mitsubishi Lancer Evolution I-VI (Pump Not Included) - 20-1330

Radium Engineering 20-1330 single fuel pump hanger for the Mitsubishi Lancer Evolution I-VI. Pump sold separately.

• Billet aluminum and stainless steel construction, partially assembled for drop-in installation
• Supports pumps from about 340 to 810 LPH, brushed (2-wire) and brushless (3- or 4-wire)
• Reuses the OEM fuel level sensor and low fuel indicator, so the stock gauge cluster readings still work
• High-flow PRV venturi jet pump with a built-in pressure relief valve for the return line
• 8AN ORB outlet and 6AN ORB return ports with low-profile fittings
• Stainless steel electrical studs with anti-rotation, anodized non-conductive acorn nuts and ETFE-insulated in-tank wiring
• Rated for gasoline, methanol and E85
• Pump and sensors are reached through the OEM access covers, so the tank does not need to be removed for service
• Requires a Radium connection kit (20-1331 or 20-1332) or plumbing kit, sold separately

Compatible pumps

• AEM 50-1220
• Walbro F90000267, F90000274, F90000285, F90000295
• Protec 11928 (brushless)
• Fuelab 49614 (brushless)
• DeatschWerks DW400, DW440 (brushless) and DW810 (brushless)

Fitment

• Mitsubishi Lancer Evolution I-VI. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
