Radium Engineering Fuel Pump Hanger Mitsubishi Lancer Evolution X (2008-2015), Brushless Pumps (Pumps Not Included) - 20-1643

Radium Engineering 20-1643 fuel pump hanger for the 2008-2015 Mitsubishi Lancer Evolution X, sized for brushless fuel pumps. Pumps sold separately.

• Replaces the factory in-tank fuel pump module and retains the OEM level sender, fuel temperature sensor and tank pressure sensor
• Holds one or two pumps
• 8AN ORB female pump-out port and 6AN ORB female return port
• Anodized aluminum collector box with a 355 LPH 1-way fill valve
• Venturi jet pump siphon, consuming roughly 15-45 LPH
• Single merged fuel pump outlet
• High-current electrical connections with anti-rotation stainless terminals
• Black anodized adapter fittings, stainless hardware and clamps

Compatible pumps

• DeatschWerks DW440 and DW810
• Fuelab 49614
• Protec 11928
• All brushless, with sock filters from the manufacturer

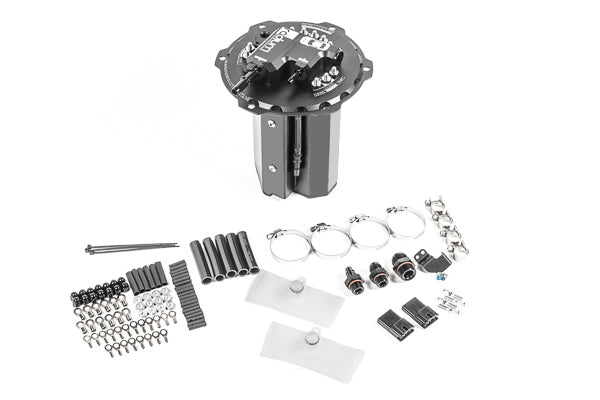

Included

• Partially assembled hanger with all components for 1 or 2 pumps
• Electrical parts bag for external wiring
• 8AN and 6AN adapter fittings for OEM lines or AN hose

Fitment

• Mitsubishi Lancer Evolution X, 2008-2015. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
