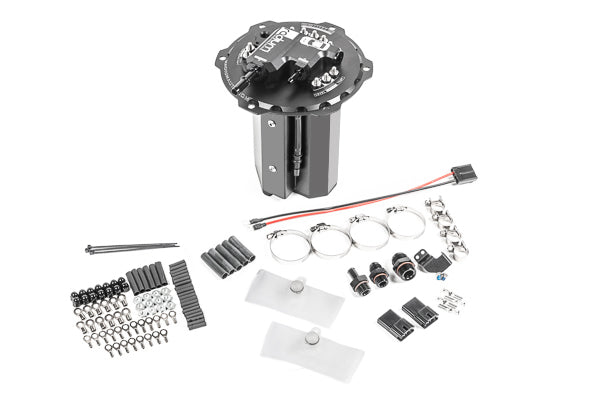

Radium Engineering Fuel Pump Hanger Mitsubishi Lancer Evolution X (2008-2015), Walbro GSS342 / AEM 50-1220 (Pumps Not Included) - 20-1640

Radium Engineering 20-1640 fuel pump hanger for the 2008-2015 Mitsubishi Lancer Evolution X, sized for the Walbro GSS342 or AEM 50-1220 fuel pump. Pumps sold separately.

• Replaces the factory in-tank fuel pump module and retains the OEM level sender, fuel temperature sensor and tank pressure sensor
• Holds one or two pumps
• 8AN ORB female pump-out port and 6AN ORB female return port
• Anodized aluminum collector box with a 355 LPH 1-way fill valve
• Venturi jet pump siphon, consuming roughly 15-45 LPH
• Single merged fuel pump outlet
• High-current electrical connections with anti-rotation stainless terminals
• Black anodized adapter fittings, stainless hardware and clamps

Compatible pumps

• Walbro GSS342 255 LPH (sock filters provided)
• AEM 50-1220 (sock filters from the manufacturer)

Included

• Partially assembled hanger with all components for 1 or 2 pumps
• Electrical parts bag for external wiring
• 8AN and 6AN adapter fittings for OEM lines or AN hose

Fitment

• Mitsubishi Lancer Evolution X, 2008-2015. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
