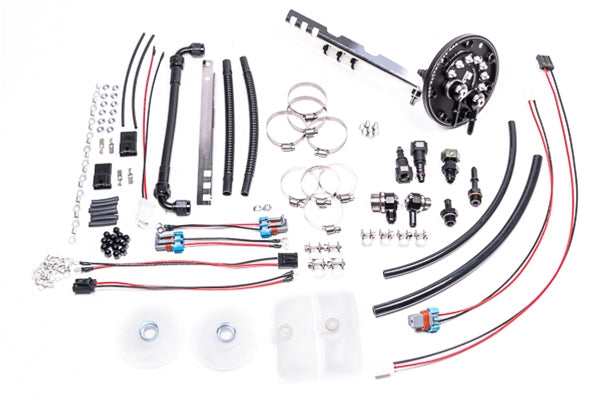

Radium Engineering Fuel Pump Hanger Toyota Chaser/Mark II/Cresta X90 X100 (Pumps Not Included) - 20-0940

Radium Engineering 20-0940 fuel pump hanger for the Toyota Chaser, Mark II and Cresta (X90 and X100). Pumps are not included.

• Drop-in aftermarket fuel pump solution that runs one or two compatible pumps
• Feed port: 7/8"-14 female (10AN ORB)
• Return port: 9/16"-18 female (6AN ORB)
• Multiple adapter fittings for connecting to OEM fuel lines
• SAE quick connector for a second pump, which snaps into the underside of the fuel hat
• Replacement PTFE feed hose for later models with an inverted-flare feed line
• Stainless steel electrical studs rated for high current, in hermetically sealed, serviceable connections
• Non-conductive anodized aluminum acorn nuts
• In-tank wiring insulated with chemically resistant ETFE
• Relay kit recommended, such as the 17-0031 DIY Fuel Pump Wiring Kit

Compatible pumps (verified by Radium)

• Walbro F90000267, F90000274, F90000285, F90000295, GSS342
• AEM 50-1000, 50-1200, 50-1230, 50-1235 (50-1230 and 50-1235 have no check valve)
• Bosch BR540
• DeatschWerks DW400, DW440 (brushless), DW810 (brushless)
• Protec 11928 (brushless)
• Fuelab 49614 (brushless)
• Ti Automotive E5LM (brushless)

Included

• Adapter fittings
• SAE quick connector for a second pump
• PTFE feed hose (later models)
• Electrical hardware for the pump(s)

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
