Radium Engineering Fuel Pump Install Kit BMW M3 E46/E36, E36 3-Series (Pump Not Included) - 20-0884

Radium Engineering 20-0884 fuel pump install kit for the BMW E46 M3, E36 M3 and E36 3-Series (OBDII only for the E36). Lets a popular high-performance 39mm aftermarket pump fit the factory hanger. Pump not included.

• Plug-and-play, bolt-in replacement that uses popular high-performance fuel pumps
• No permanent modifications to the fuel system are required
• 6061-T6 CNC billet aluminum sleeve fits over a 39mm aftermarket pump to mimic the larger OEM pump diameter
• Machined rib snaps into the fuel pump hanger and positions the filter sock
• For vehicles with an OEM pump measuring 43mm in diameter
• Pumps tested and verified by Radium: Walbro GSS342 255LPH, Walbro F9000262 (gas), Walbro F9000267 (E85), Walbro F90000273 (gas), Walbro F9000274 416LPH (E85), AEM 50-1000 (gas), AEM 50-1200 (E85), Aeromotive 340R 11141, Aeromotive 340R 11142, DeatschWerks 9-301-1000
• A filter sock is required. Measure the pump outside diameter before ordering

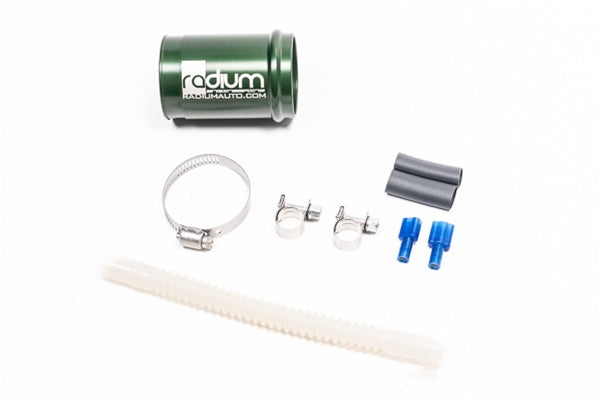

Included

• Anodized billet aluminum pump adapter
• EFI hose clamps (x2)
• Worm drive hose clamp
• Heat shrink
• Electrical terminals
• Submersible convoluted fuel tube

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
