Radium Engineering Fuel Pump Install Kit Porsche 911 Turbo (996), Pump Not Included - 20-0276-00

Radium Engineering 20-0276-00 fuel pump install kit for the Porsche 911 Turbo (996). A bolt-in fuel pump replacement solution that lets aftermarket 39mm pumps fit the 50mm pump location. Pump not included.

• 6061-T6 CNC billet aluminum sleeve slides over the 39mm pump, with a machined rib that snaps into the pump hanger and positions the filter sock
• No permanent fuel system modifications required. The OEM venturi jet pump and level sender are retained
• Measure the OEM pump and confirm it is 50mm in diameter before ordering
• Tested compatible pumps: Walbro GSS341/GSS342 (255LPH), F90000262, F90000267, F90000273, F90000274, F90000285 and F90000295; AEM 50-1000 and 50-1200; Aeromotive 340R 11141 and 11142; DeatschWerks DW300 9-301-1000. Other pumps must have a 39mm outer diameter
• Most listed pumps outflow the OEM pump, except the Walbro 255LPH. Removing the OEM check valve, as the instructions describe, lets the Walbro 255LPH outflow the OEM pump as well
• Blue male spade terminals fit the OEM harness. A flying lead may be needed for the chosen pump. Walbro F90000262 and F90000273 use the same connectors as the OEM pump

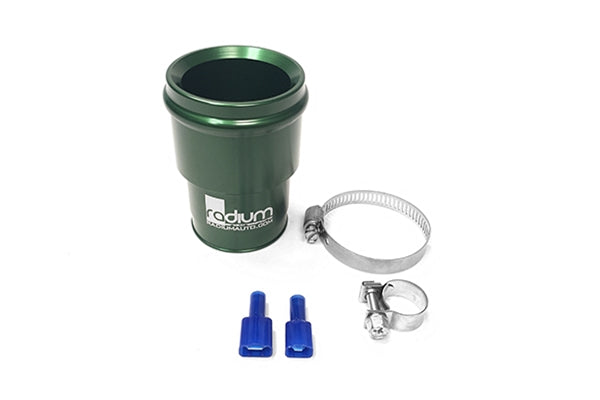

Included

• Anodized billet aluminum pump adapter
• EFI hose clamp
• Worm drive hose clamp
• Electrical terminals

Fitment

• Porsche 911 Turbo (996), AWD, 50mm OEM pump only. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
