Radium Engineering Fuel Rail Plumbing Kit GM Vortec 8100 L18 Big Block 01-03 - 20-1062

Radium Engineering 20-1062 fuel rail plumbing kit for the 01-03 GM Vortec 8100 L18 Big Block, for use with the Radium 20-0862 fuel rails.

• For 2001-2003 vehicles with return-style fuel systems
• SAE quick connect for the OEM feed line
• 8AN crossover line between the rails
• Fuel pressure gauge and adjustable regulator mounted on the LH rail
• The OEM return connector attaches to the regulator

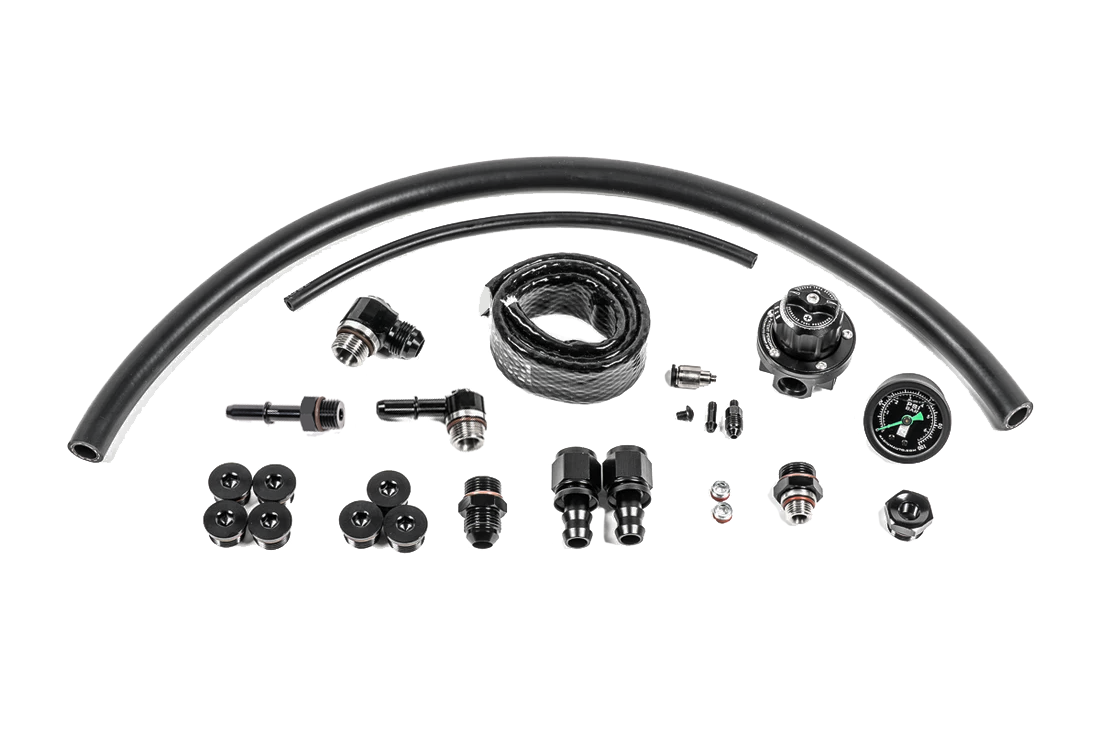

Included

• 0-100 psi fuel pressure gauge
• Direct-mount fuel pressure regulator
• 5/32 in vacuum hose and 1/2 in EFI hose
• Thermal insulation sleeve
• 8AN ORB to 1/8 in NPT fitting
• 8AN ORB plugs (x7) and 1/8 in NPT plugs (x2)
• 8AN ORB to 8AN male fitting
• Pushlok hose ends (x2)
• 8AN ORB to 6AN ORB swivel union
• 6AN ORB to 5/16 in SAE swivel
• 8AN ORB to 8AN male swivel
• 8AN ORB to 3/8 in SAE swivel

Fitment

• GM Vortec 8100 L18 Big Block, 01-03, return-style fuel system. (Source: Radium Engineering)
• Vehicle list for the matching 20-0862 fuel rails is on the Radium product page below.

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
