Radium Engineering Fuel Rail Plumbing Kit GM Vortec 8100 L18 Big Block, 2004-2010 Returnless - 20-1162

Radium Engineering 20-1162 fuel rail plumbing kit for the GM Vortec 8100 L18 big block, 2004-2010 returnless fuel systems. Plumbs the Radium 20-0862 fuel rails (sold separately).

• Plug-and-play plumbing for 20-0862 rails on 2004-2010 vehicles with a returnless fuel system
• SAE quick connect adapts to the OEM feed line
• 8AN crossover line routes around the rear of the engine and connects both rails
• FPD-R fuel pulse damper mounts directly to the left hand rail to stabilize fuel pressure
• 8AN ORB plugs cover unused ports. Nothing else is required

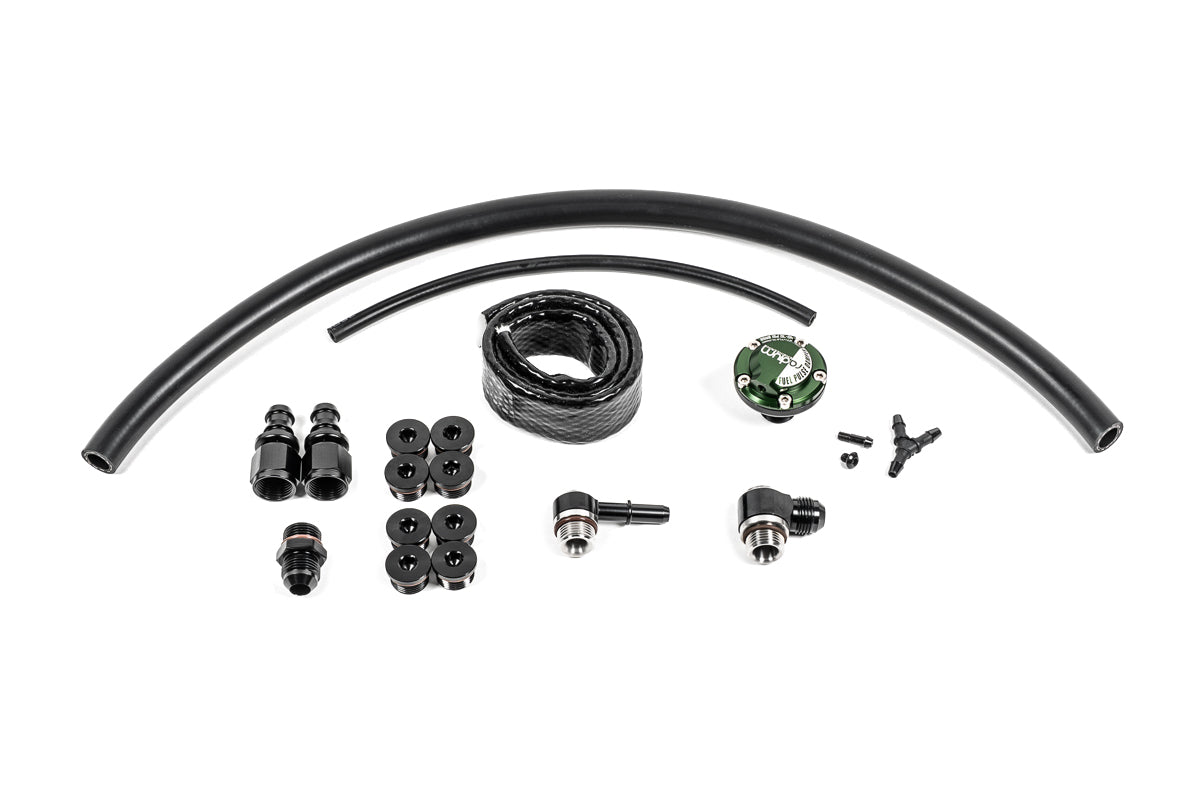

Included

• FPD-R direct mount pulse damper
• 5/32 in vacuum hose
• 1/2 in EFI hose
• Thermal insulation sleeve
• 8AN ORB plug (x8)
• 8AN ORB to 8AN male fitting
• Pushlok hose end (x2)
• 8AN ORB to 8AN male swivel fitting
• 8AN ORB to 3/8 in SAE swivel fitting

Fitment

Radium lists the following for the Vortec 8100 L18 fuel rail and plumbing kit page. This kit is for 2004-2010 returnless fuel systems.

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
