Radium Engineering Fuel Rail Top Feed Conversion Mazda 26B Primary - 20-1126

Radium Engineering 20-1126 primary fuel rail, top feed conversion, for the Mazda 26B 4-rotor engine.

• High-flow primary fuel rail with thermal insulating spacers and washers and stainless steel hardware to limit heat transfer into the fuel
• 14mm lower injector seats work with or without the OEM diffusers
• FKM O-rings on the injector seats, suitable for boosted applications
• Green injector seats with an O-ring that extends past the air assist injector holes in the iron
• Four ports tapped for 8AN ORB fittings. The center ports allow accessories such as an OEM fuel temperature sensor, a pressure transducer or a pulse damper
• Allow ample clearance around the ports for larger accessories such as regulators, gauges and dampers
• Injectors are not included. Universal injectors with 34mm height and 14mm O-rings are required

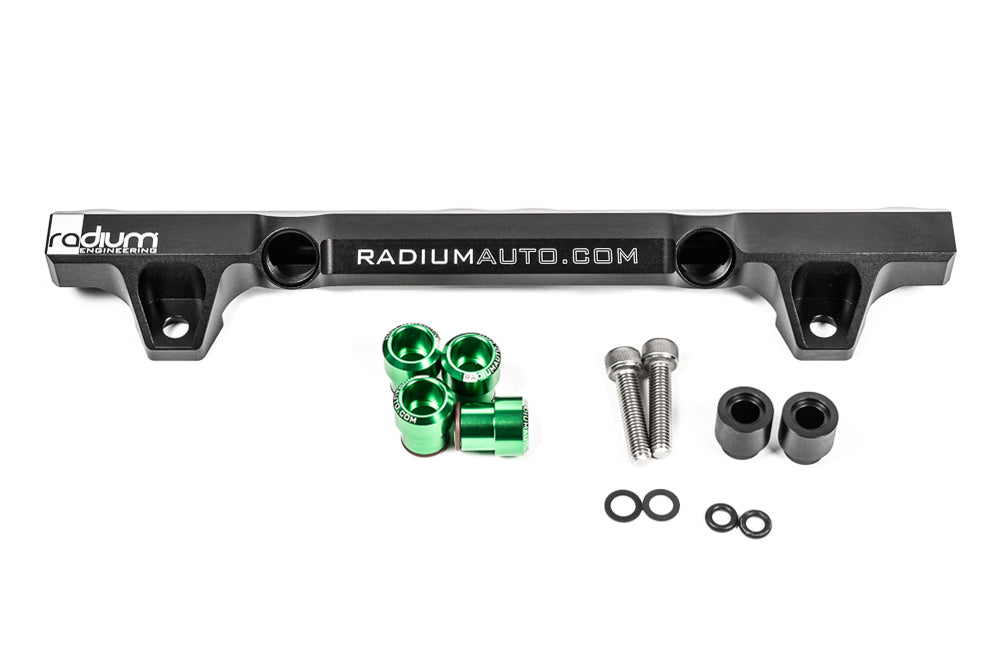

Included

• Anodized billet aluminum fuel rail
• Anodized billet aluminum injector seats
• Thermal spacers
• Mounting hardware

Fitment

• Mazda 26B 4-rotor engine. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
