Radium Engineering Fuel Rail Toyota 3S-GE / 3S-GTE Gen 3-5, Celica, MR2, Caldina, Altezza, RAV4 - 20-0949

Radium Engineering 20-0949 fuel rail for the Toyota 3S-GE and 3S-GTE Gen 3-5 engines. Fits the vehicles listed below.

• Anodized billet aluminum construction for wear and corrosion resistance
• 0.7 in inner bore diameter
• Two fuel rail ports, tapped for 8AN ORB fittings
• Three sets of billet mounting feet cover all Gen 3-5 engines
• Top-feed injector adapters for the 3S-GTE Gen 3
• Reuses the OEM thermal insulating spacers
• No special tools required for installation
• 3S-GE Gen 3-5 and 3S-GTE Gen 4-5: works with OEM top-feed injectors or equivalents. Injectors must match the factory height and O-ring dimensions
• 3S-GTE Gen 3: the factory side-feed injectors are not compatible with this rail. Aftermarket 48 mm injectors with 11 mm upper and 14 mm lower O-rings are required

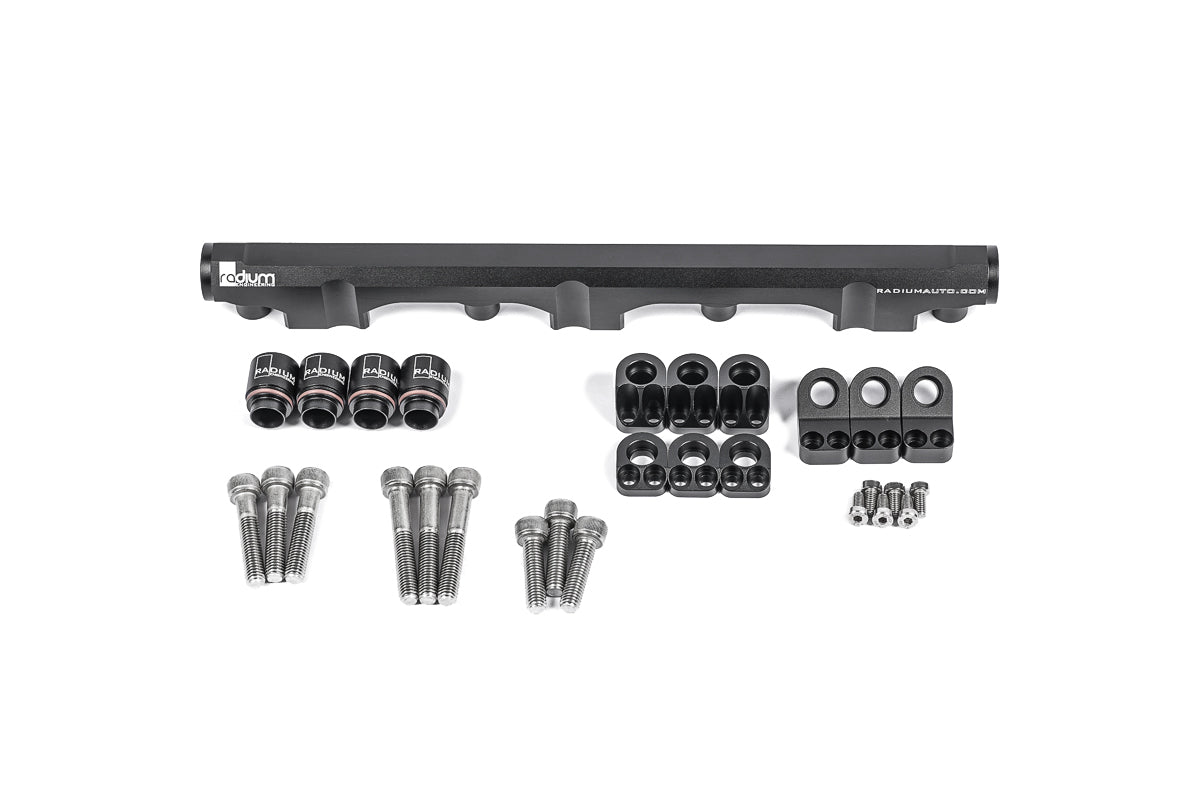

Included

• Anodized billet aluminum fuel rail
• Anodized billet aluminum mounting feet
• Anodized aluminum injector seats
• Stainless steel mounting hardware

Fitment

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
