Radium Engineering Fuel Rail Toyota 3S-GE and 3S-GTE Gen 1-2 MR2, Celica - 20-0849

Radium Engineering 20-0849 fuel rail for the Toyota 3S-GE and 3S-GTE Gen 1-2 engines. Fits the 1990-1995 Toyota MR2 and the 1985-1993 Toyota Celica, including the GT-Four and All-Trac.

• 0.7 in internal bore
• Anodized finish for wear and corrosion resistance
• Lightweight aluminum construction with injector seats suited to high-flow injectors
• Ports tapped for 8AN ORB fittings. Fittings are not included. Choose fittings for your application and leave clearance for regulators, gauges and pulse dampers
• Reuses the thermal insulating spacers and uses stainless steel hardware
• No special tools needed for installation
• 3S-GE Gen 1-2 and 3S-GTE Gen 1: works with OEM injectors or equivalents without modification. Injectors must match factory height and O-ring dimensions
• 3S-GTE Gen 2: these engines used side-feed injectors, which are not compatible with this rail. Use aftermarket 48 mm injectors with 11 mm upper and 14 mm lower O-rings

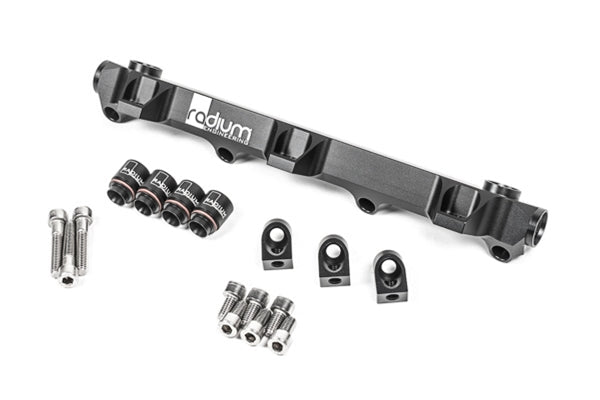

Included

• Anodized billet aluminum fuel rail
• Anodized billet aluminum mounting feet
• Anodized aluminum injector seats
• Stainless steel mounting hardware

Fitment

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
