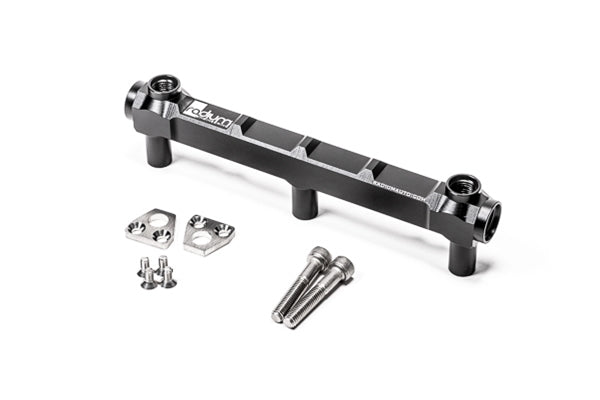

Radium Engineering Fuel Rail Toyota GR Yaris, GR Corolla G16E-GTS - 20-0766

Radium Engineering 20-0766 fuel rail for the Toyota G16E-GTS engine. Fits the 2021+ Toyota GR Yaris and 2023+ Toyota GR Corolla.

• Anodized aluminum construction for wear and corrosion resistance
• Large 0.6 in internal bore
• Two end ports tapped for 8AN ORB (3/4"-16) fittings and two top ports tapped for 6AN ORB (9/16"-18) fittings, sized for the narrow upper engine area
• Fits under the factory engine cover
• Can be converted to a pressure-regulated return system
• No special tools required for installation
• Upgrade rail: OEM or OEM-equivalent injectors are required. Equivalent injectors must match the OEM injector height and have matching upper and lower O-ring diameters and styles. Consult your tuner for injector size
• Port fittings are selected for the specific application. Check clearance for regulators, gauges and pulse dampers

Included

• Fuel rail
• All necessary mounting hardware

Fitment

• 2021+ Toyota GR Yaris, G16E-GTS. (Source: Radium Engineering)
• 2023+ Toyota GR Corolla, G16E-GTS. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
