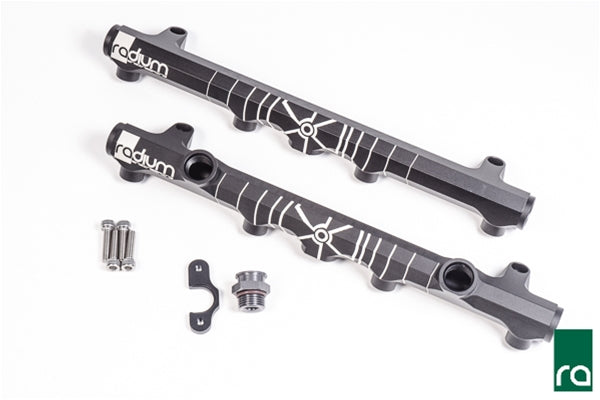

Radium Engineering Fuel Rails Ford Shelby GT500 - 20-0320

Radium Engineering 20-0320 fuel rails for the 2007-2014 (S197) Ford Shelby GT500.

• Upgrade rails: OEM or OEM-equivalent injectors must be used. OEM injectors can be reused. Equivalent injectors must match the OEM height and upper and lower O-ring diameters and styles. Consult your tuner for injector size
• Eight 3/4-16 (8AN ORB) ports in total
• LH rail has three ports. The lower center port is commonly used for Radium fuel pulse dampers
• RH rail has five ports. The top front port holds the included OEM fuel pressure sensor adapter and the top rear port is commonly used for aftermarket fuel pressure monitoring
• Black anodized, laser-etched aluminum
• Compatible with all fuel types, including E85
• Fuel rail plumbing kit 20-0334-11 is sold separately. It feeds the rails in parallel from the OEM hard line near the firewall

Included

• RH and LH fuel rails
• Ford fuel pressure sensor 8AN ORB adapter fitting
• Stainless steel mounting bolts

Fitment

• Ford Shelby GT500 (S197), 2007-2014, Trinity engine. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
