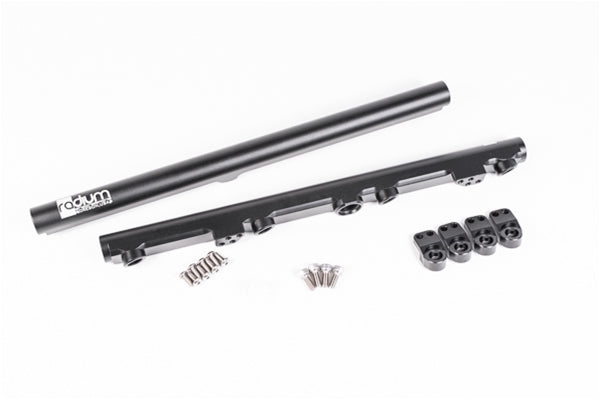

Radium Engineering Fuel Rails GM LS1, LS2, LS3, LS6, L76, L99 - 20-0232

Radium Engineering 20-0232 fuel rails for the GM LS1, LS2, LS3, LS6, L76 and L99 engines.

• 0.69 in internal bore
• CNC machined from extruded 6063 aluminum, black anodized and laser etched
• End ports tapped for 8AN ORB (3/4-16 female). Lower center ports tapped for 8AN ORB for optional adapters
• Billet mounting feet can be flipped and reinstalled in different threaded holes to fit the listed engines
• 14 mm injector bores accept factory injectors
• Compatible with all fuel types, including E85
• Upgrade rails: OEM or OEM-equivalent injectors are required. Equivalent injectors must match the OEM injector height and have matching upper and lower O-ring diameters and styles, and must match the intake manifold (for example LS1 injectors with an LS1 manifold)

Included

• Black anodized, laser etched aluminum fuel rails
• Black anodized aluminum mounting feet
• Stainless steel mounting hardware

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
