Radium Engineering Fuel Rails Nissan R35 GT-R VR38DETT - 20-0556-02

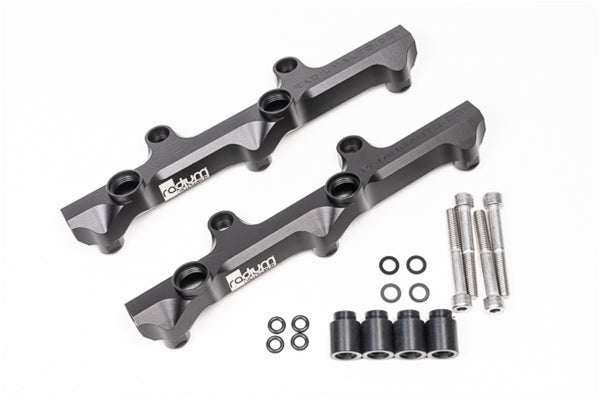

Radium Engineering 20-0556-02 fuel rails for the Nissan R35 GT-R with the VR38DETT engine.

• Machined from 6061 aluminum and anodized black
• Compatible with popular fuel types, including E85
• Large internal bore
• Four 8AN ORB ports per rail (2 end, 2 top), 8 ports in total across both rails
• Mounts with insulating spacers and washers to isolate the fuel from the hot intake manifold
• Lower intake manifold mounting points allow shorter, less restrictive rails
• OEM injector clips can be reused
• Upgrade rail: OEM or OEM-equivalent injectors are required. Equivalent injectors must match the OEM injector height and have matching upper and lower O-ring diameters and styles. Consult your tuner or the injector manufacturer for injector selection

Included

• Anodized billet aluminum fuel rail (x2)
• Thermal washers (x4)
• Thermal spacers (x4)
• Stainless steel mounting hardware

Fitment

• Nissan R35 GT-R, VR38DETT. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
