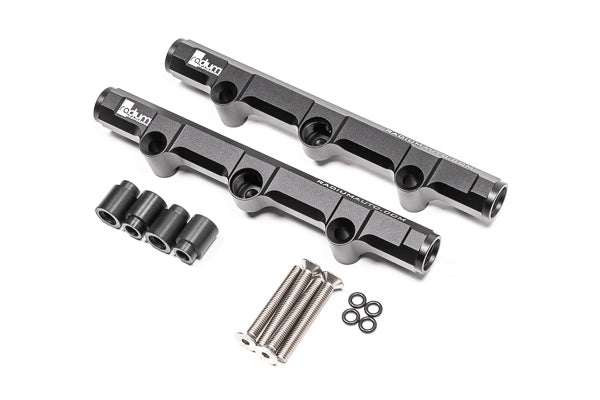

Radium Engineering Fuel Rails Subaru Phase-II EZ30 and EZ36 Legacy, Outback, Tribeca - 20-0765-02

Radium Engineering 20-0765-02 fuel rails for the Subaru Phase-II EZ30 and EZ36 engines. Fits the Subaru Legacy 3.0R and 3.6R, Outback 3.0R and 3.6R, and Tribeca.

• CNC machined from solid 6061 aluminum, black anodized and laser etched
• Large internal bore to support high power
• Compatible with all fuel types, including E85
• Three 8AN ORB ports on each rail (six in total)
• Machined insulating spacers for injector height flexibility and thermal insulation
• Clears the AVCS solenoid. On the Phase-II EZ30 only, the front port on the RH cylinder head is very close to the AVCS and must be plugged with a 14-0150 8AN ORB plug (sold separately)
• Upgrade rail: OEM or OEM-equivalent injectors are required. Equivalent injectors must match the OEM injector height and have matching upper and lower O-ring diameters and styles. Consult your tuner for injector size
• Fuel injectors are not included

Included

• Black anodized, laser-etched aluminum fuel rails
• Thermal insulating press-in spacers, 11 mm
• Stainless steel mounting hardware

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
