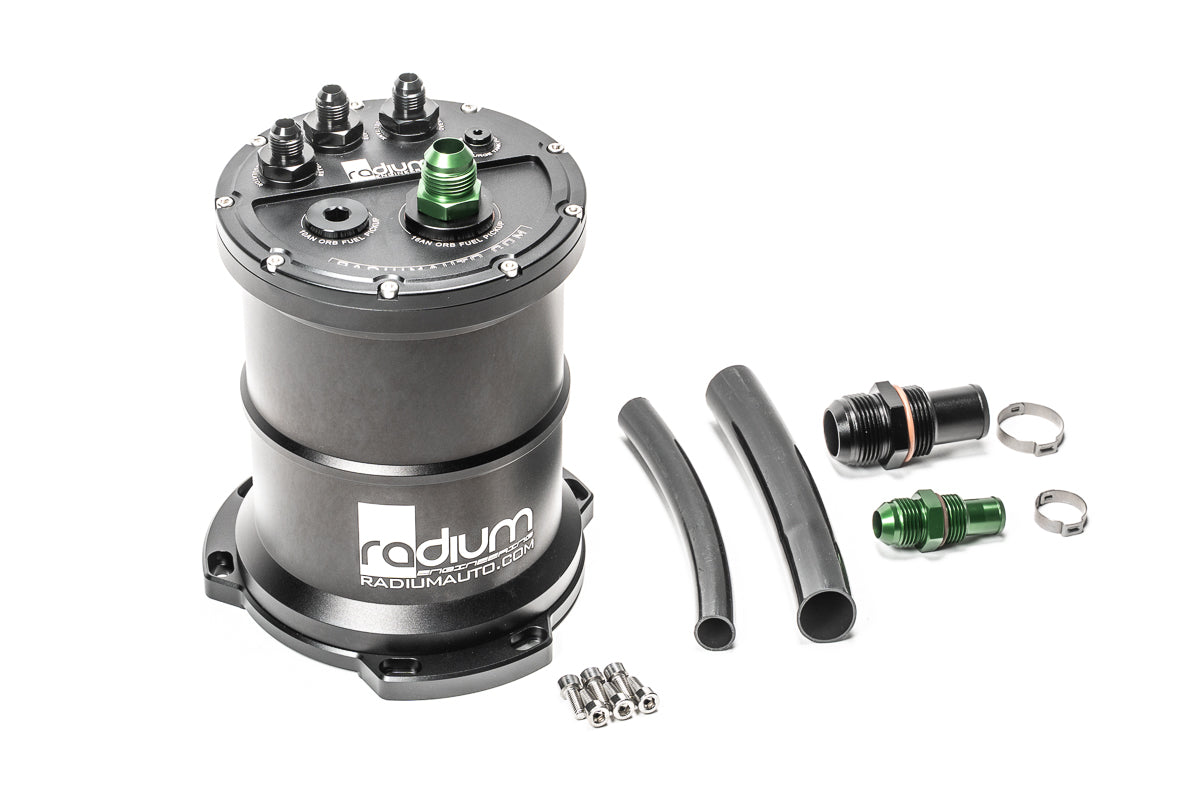

Radium Engineering Fuel Surge Tank for External Pumps, 2.21L - 20-1195

Radium Engineering 20-1195 fuel surge tank for external pumps, with a 2.21 L (0.58 gallon) canister. Universal fitment.

• Prevents fuel starvation on vehicles with inadequate tank baffling
• The main tank pump keeps the surge volume filled and excess fuel returns to the main tank
• Suited to large fuel demand upgrades such as forced induction
• Three 8AN ORB ports with pre-installed 6AN male fittings: main tank supply, overflow to main tank and external fuel pressure regulator return
• Two pickup and output ports for external pumps. Pickup options: single 16AN (1 in), single 10AN (5/8 in), dual 10AN, or 16AN plus 10AN. Factory assembly is a single 10AN pickup
• Underside suits uneven trunk surfaces. Should not be mounted horizontally
• Lift pump flow should be 40-50% of the surge pump flow rate

Included

• 2.21 L surge tank with preassembled 10AN pickup
• Parts to convert to a 16AN pickup
• Additional 10AN pickup for a second pump, such as a priming pump
• Two 80 micron filter socks
• Stainless steel mounting hardware

A high micron external fuel filter is required before the pump when using the 16AN pickup (not included). Additional mounting hardware may be needed for some installs.

Fitment

• Universal, for use with external electric or mechanical fuel pumps. (Source: Radium Engineering)
