Radium Engineering Fuel Surge Tank (FST) Single Pump (Pump Not Included) - 20-0960

Radium Engineering 20-0960 fuel surge tank (FST), single pump. The fuel pump is not included.

• Prevents fuel starvation on vehicles with inadequate fuel tank baffling
• Upgrades a standard fuel system without modifying the stock tank or pump, suited to large fuel demand upgrades such as forced induction
• Extruded anodized aluminum 1.5 L canister with removable, O-ring sealed billet aluminum caps
• Internal flow deflector reduces fuel foam and aeration on all three ports
• Internal pump feeds the fuel rail through a 6AN bulkhead fitting
• Three interchangeable 6AN ORB ports: lift pump inlet, overflow to main tank and regulator return
• Stainless anti-rotation electrical studs with insulated ETFE in-tank wiring
• Mounts vertical to horizontal, on the side or bottom, with an aluminum bracket
• Optional 1/8 in NPT fuel level switch with diagnostic LED (sold separately)
• Compatible pumps: Walbro F90000267, F90000274, F90000285, F90000295, GSS341, GSS342; AEM 50-1000, 50-1200, 50-1220; Bosch BR540; Deatschwerks DW400, DW440, DW810; Protec 11928; Fuelab 49614; Ti Automotive E5LM

Included

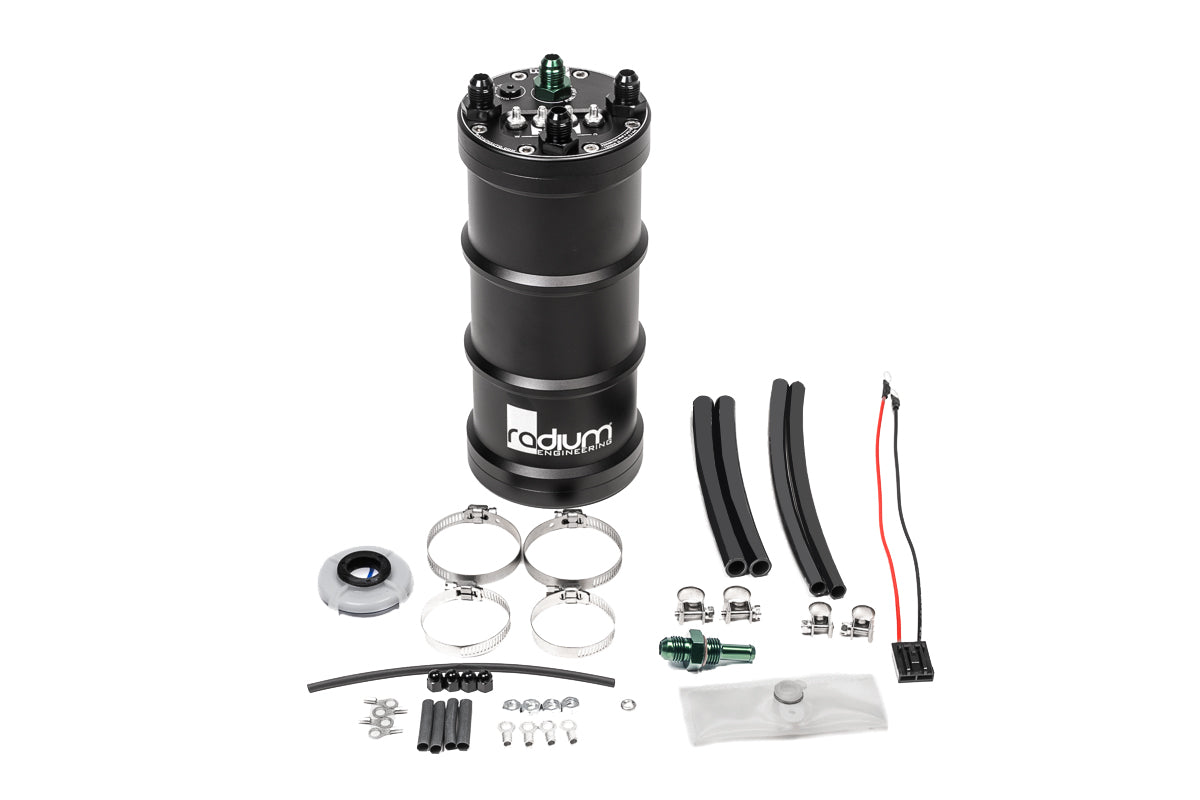

• 1.5 L anodized aluminum canister with removable billet aluminum caps
• 6AN ORB fittings
• Stainless steel hardware
• Stainless clamps for 39-45 mm diameter pumps
• Large and small ID pump connections
• Plug-and-play pump wiring
• Pre-pump sock filters
• Anti-rotation electrical terminals

Not included

• Fuel pump
• Fuel level switch 20-0461 and diagnostic LED 20-0508 (optional)
• Relay kit 17-0031 (recommended)

Fitment

• Universal, not vehicle specific. No vehicle fitment is listed. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
