Radium Engineering Fuel Surge Tank Install Kit Ford Focus ST 2013+, Focus RS 2015+ - 20-0365

Radium Engineering 20-0365 fuel surge tank install kit for the 2013+ Ford Focus ST and 2015+ Ford Focus RS. Mounts a Radium FST-R fuel surge tank, which is not included.

• Pump-in-surge-tank design replaces the OEM fuel supply line to feed the high-pressure fuel pump
• The OEM low-pressure pump is redirected to fill the surge tank, which protects the surge pump from fuel starvation. Overflow returns to the OEM filler hose through a billet adapter
• Integrated regulator on the FSTR-RA can be vacuum-referenced for 1:1 fuel pressure or run static to mimic stock
• Anodized aluminum bracket mounts to OEM points and places the tank in a collision-safe area under the vehicle, ahead of the rear bumper support
• Heat tape reflects heat from the exhaust
• Wiring uses flying leads with Raychem solderless butt splices, plus a weatherproof fuse and relay. No soldering required
• FST-R fuel surge tank is sold separately; the fuel pump is optional
• A means to adjust FST-R fuel pressure is required: OBDII software or Radium part 20-0152 on the FSTR-RA outlet port
• A drop-in fuel pump upgrade in the main tank may be needed

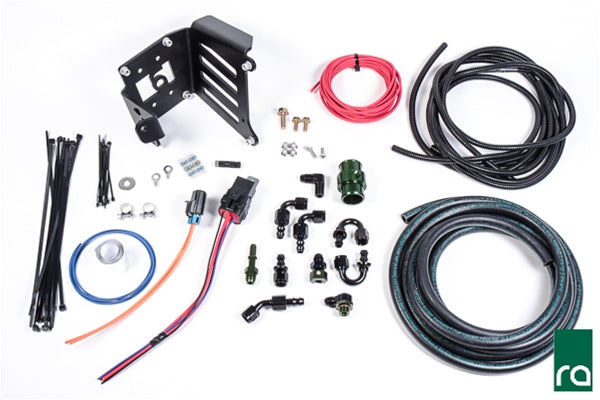

Included

• Aluminum MK3 Focus FST mounting bracket
• Aluminum Push Lok -6AN hose ends
• AN and OEM-style adapter fittings
• Vapor Shield 3/8 in (-6AN) EFI hose
• Wiring components with relay and fuse
• Stainless steel hardware
• Heat tape

Fitment

• Ford Focus ST, 2013 and newer. (Source: Radium Engineering)
• Ford Focus RS, 2015 and newer. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)
