Radium Engineering Fuel Surge Tank Install Kit Honda S2000 2000-2005 (FST Not Included) - 20-0094

Radium Engineering 20-0094 fuel surge tank install kit for the 2000-2005 Honda S2000. Installs a Radium fuel surge tank with a single 39 mm fuel pump. The surge tank and pump are sold separately.

• Installs a Radium fuel surge tank (FST) with a single 39 mm fuel pump
• Mounts in a hidden, collision-safe area of the trunk behind the left seat using factory threaded bosses, with no drilling or modification required
• Bolt-on aluminum bracket with 3 rubber isolation mounts to reduce fuel pump noise and vibration
• Wiring uses Raychem solderless butt splices with flying leads, no soldering required
• Weatherproof fuse and relay drive the surge tank pump
• Wiring and hose are compatible with alcohol fuels (ethanol, methanol, E85)
• 100% of trunk space remains usable
• Not designed for the Radium MPFST
• A drop-in fuel pump upgrade may be needed in the main tank. The main tank pump should flow roughly 40% to 50% of the surge tank pump flow

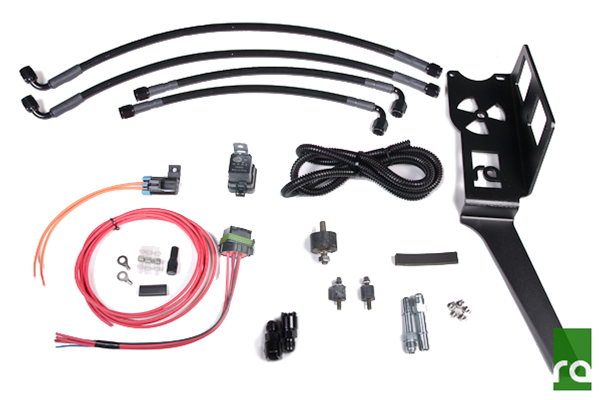

Included

• Preassembled 3/8 in (6AN) PTFE hoses (4)
• Aluminum mounting bracket with vibration isolators
• AN and OEM-style adapter fittings
• Stainless steel hardware
• Wiring components with relay and fuse

Not included

• Radium fuel surge tank (FST)
• Fuel pump for the surge tank

Fitment

• Honda S2000, 2000-2005. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
