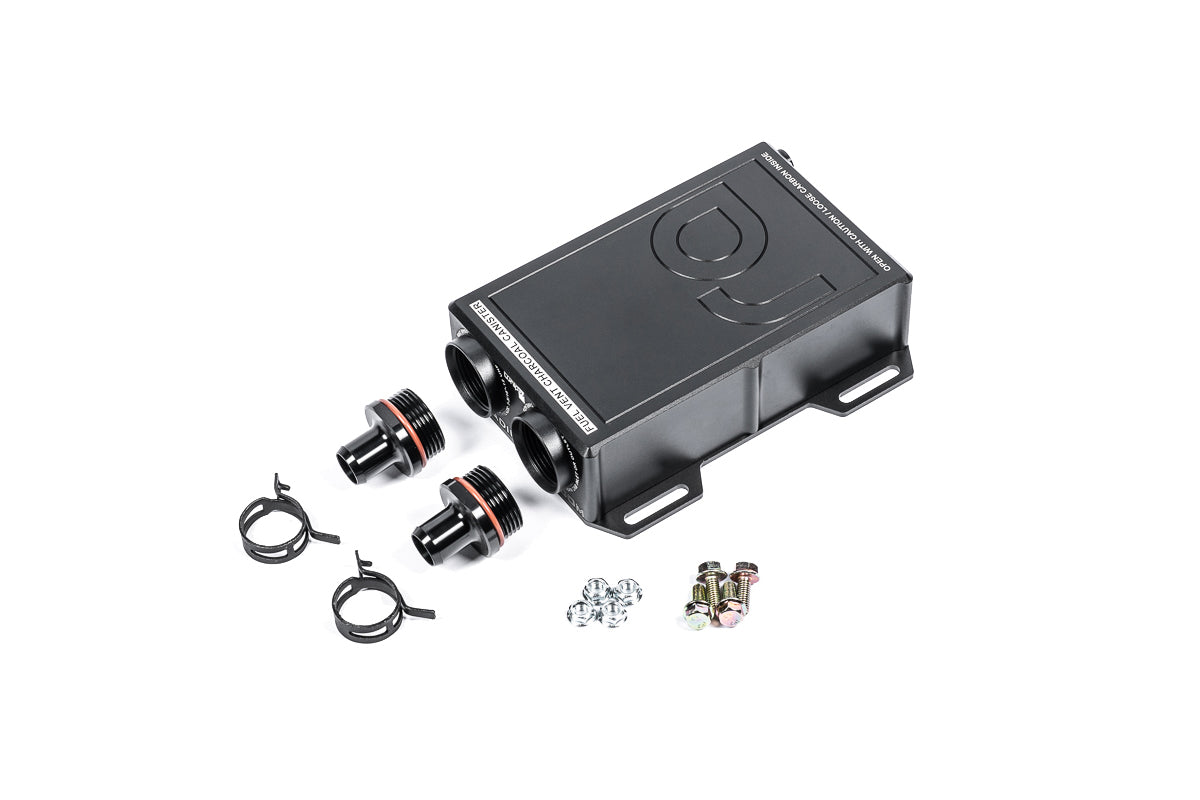

Radium Engineering Fuel Vent Charcoal Canister, 3/4 in Vent Hose - 20-1828-12

Radium Engineering 20-1828-12 high flow fuel vent charcoal canister for 3/4" fuel vent hose. Universal fit for EFI and carbureted fuel systems.

• Purifies odors from the fuel tank vent system
• Used with Radium vent kit 20-0484-12 (sold separately) to integrate with a Radium fuel cell surge tank
• A 3/4" air filter can attach directly to one of the barbs
• CNC machined 6061 aluminum body, type-II anodized
• Vibratory-packed activated carbon inside a 150 micron strainer and an anodized aluminum baffle that keeps loose carbon from leaving the canister
• Holds 5 times more activated carbon than the compact 20-1827 series, so it needs less servicing
• 16AN ORB (1-5/16"-12) female ports, usable as inlet or outlet
• Two 4AN ORB (7/16"-20) female drain ports at the bottom with preinstalled plugs. One can be used with a Petcock Drain Kit depending on orientation
• Outlet gas content below 50 ppm in Radium testing

Fitment

• Universal, EFI and carbureted fuel systems. (Source: Radium Engineering)
